Plug Pins Fixation Test Apparatus

IEC 60884-1 2013 clause 24.10 and figure 30

The plug pin fixation test apparatus is a device used to verify the fixation of pins installed in the body of everyday plugs.

Test sample:
Plug pins

1. Station: 1 station

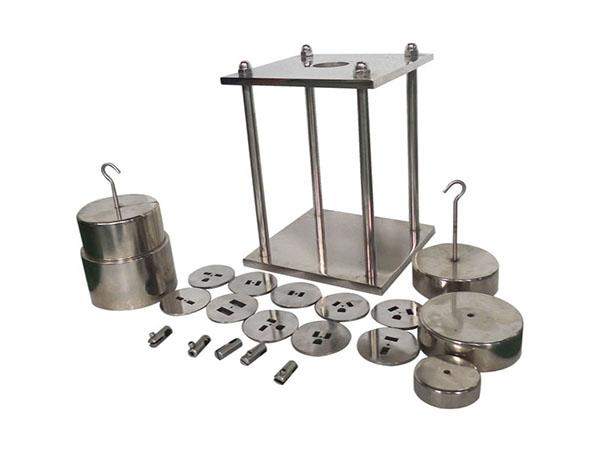

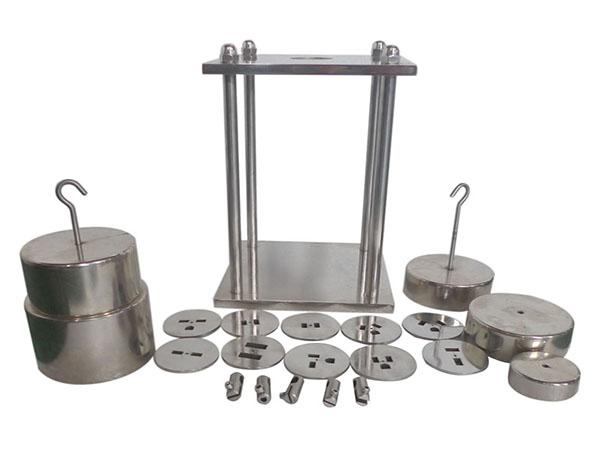

2. Weights: 4N, 20N, 30N, 50N, one each

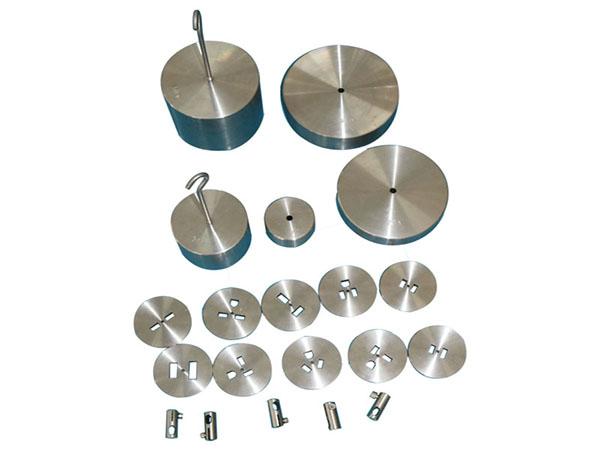

3. Gauges: provide 6A plug gauge, 10A plug gauge, 16 plug gauge, one each
For flat pins, hole size is equal to the pin size plus 4±0.44mm;
For round pins, hole size equal to pin diameter plus 6±0.5mm. (Customizable)

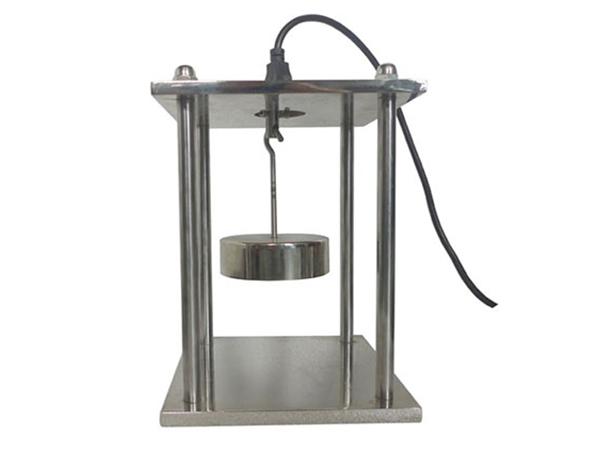

4. Clamp unit: plug pin clamp unit, 1 set
5. Tested within a heating cabinet at a temperature of (70 ± 2) °C
