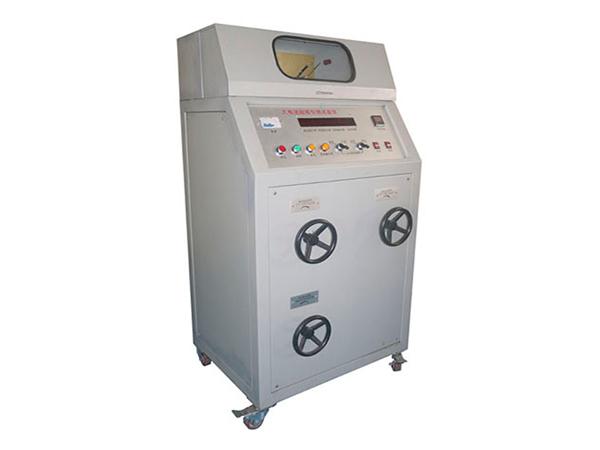

High Current Arc Ignition Tester

Standard:
IEC 60950-1,BS EN 60950-1、BS 7002, UL746A,IEC60947.1, IEC730.1.

Application:
The high current arc ignition tester is designed to measure the arcing resistance of electrical and electronic products, household appliances and their materials. The working principle is to simulate electric leakage on the insulator which may cause different polarizations of live parts or between live parts and grounded (earthed) metal parts. It is also used to measure and assess the arc resistance performance of the insulator under the prescribed voltage.

Test sample:
Information technology equipment, low voltage switches and control equipment parts.

Parameters:

Working voltage 220V/50Hz

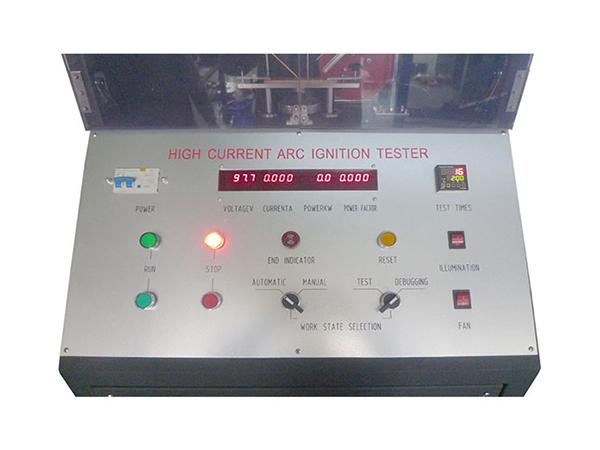

Control operation mode Electrical control, button operation
Arc strike current and power factor When the power factor is 0.5, the current is 33A±0.5A
Arc strike speed 40 times/min
Electrode separation velocity 254±25㎜/S
Arc strike times 0-9999 can be preset

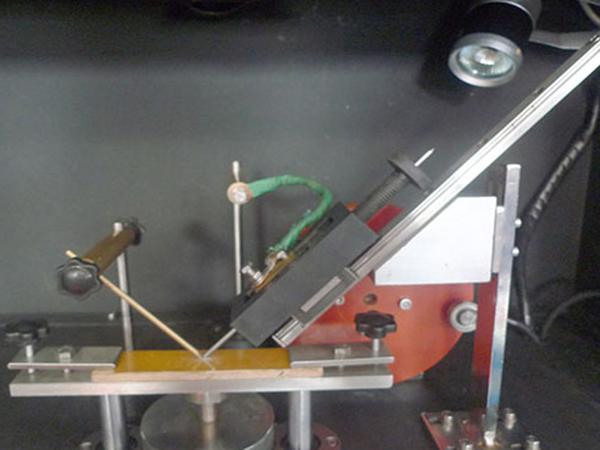

Electrode material Static electrode-copper,dia.Ф3.5mm (Ф3.2)×152mm,top bevel angle 30° Moving electrode-stainless steel,diaФ3.5mm(Ф3.2)×152mm, top cone angle 60°
Electrode included angle Form 45° with level,electrode head radius of curvature 0.1mm
Test procedure Automatic control, independent exhaust
Lighting Equip with lighting in the test chamber, with control
Test chamber and dimension LWH: 800×700×1600mm,300kg

Feature:
Utilizing an integral intake automatic ignition system, combustion time delay is only 0.1s to ensure the full combustion of the gas.
