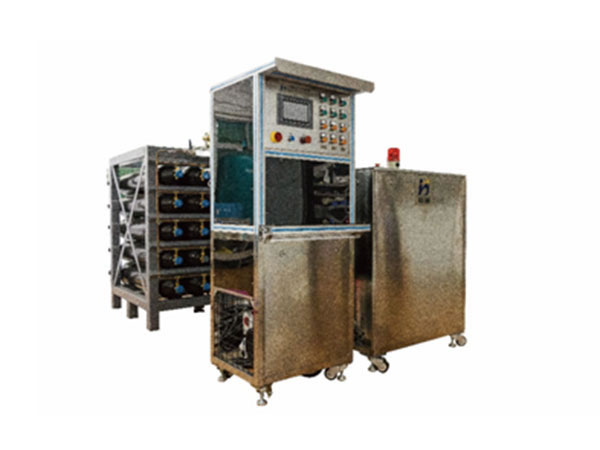

Product Information
The manual leak detection method is suitable to test leakages in certain devices. It is a necessary device in helium charging and recovery systems. The testing system is used to detect and recover leaked helium.

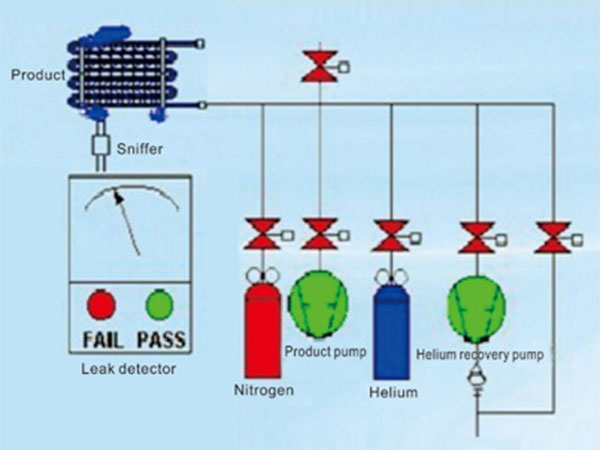

Test Concept
Evacuate the product.
Charge helium into the product till preset pressure.
Find the potential leak point with the helium sniffer.
Recover helium from the product.

Technical specification
Highest helium output pressure: 55bar
Helium output capacity: 120L/min & 240L/min as standard product, we can also provide tailor-made products with different output pressures and capacities.
Helium recovery rate: ≥90%

Main Parts of System
Vacuum pump: Leybold
Vacuum sensor: Inficon

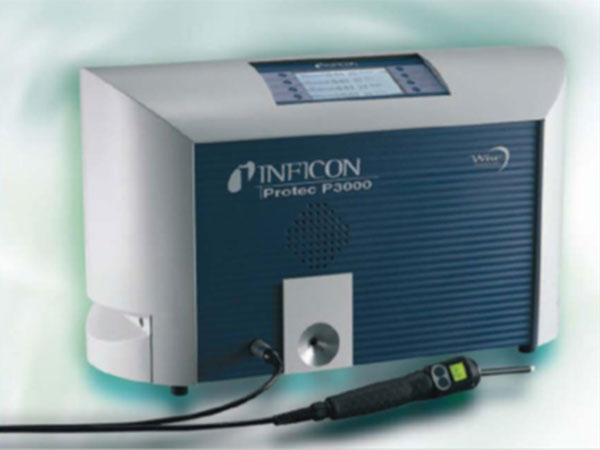

Helium leak detector: Inficon
Pressure sensor: GE
Solenoid valve: Burkert
PLC: Omron

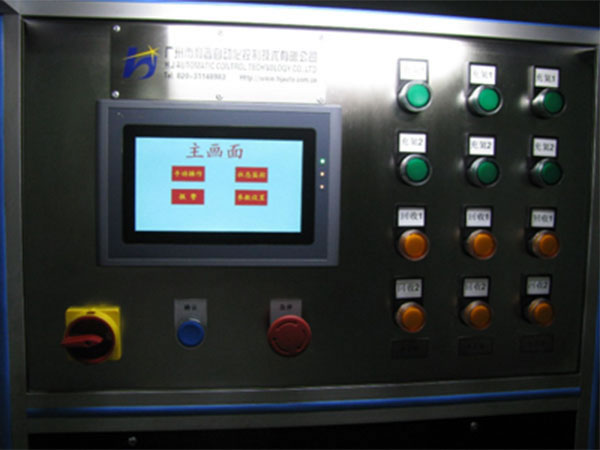

HMI: Omron
