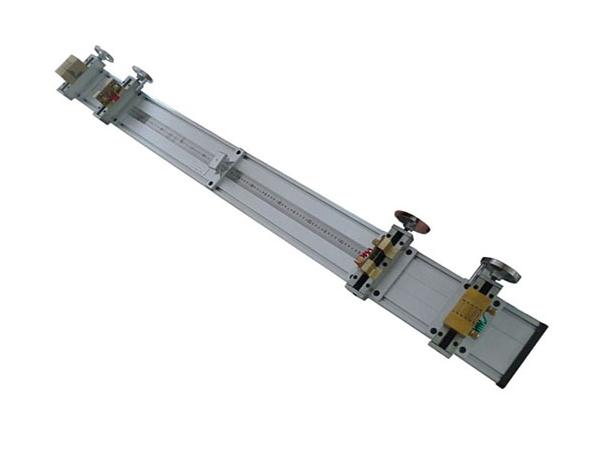

Universal Conductor Electrical Resistance Test Fixture

Standard:
IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

Application:
The universal conductor electrical resistance test fixture was developed for DC resistance measurement of a variety of power cables and electrical equipment, wire and cable equipment specified in "Test methods for electrical properties of electric cables and wires", as well as for DC resistance measurement of other conductor materials.

Test sample:
1mm² ~ 630mm² Single or multi-stand conductors and cores of power cables.

Parameters:

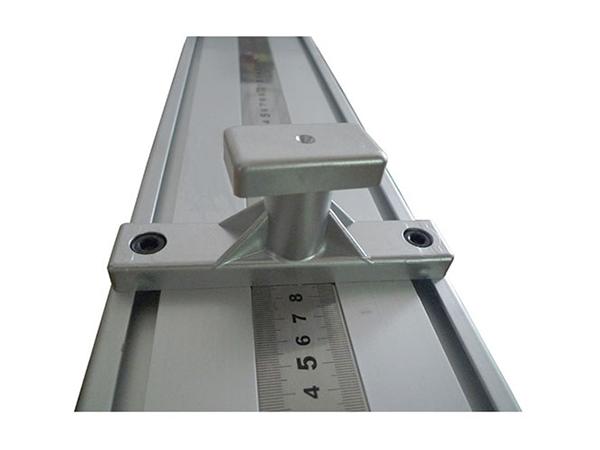

The distance of clamping head between two voltage 100~1000mm
Dimensions 1530 × 210 × 150mm

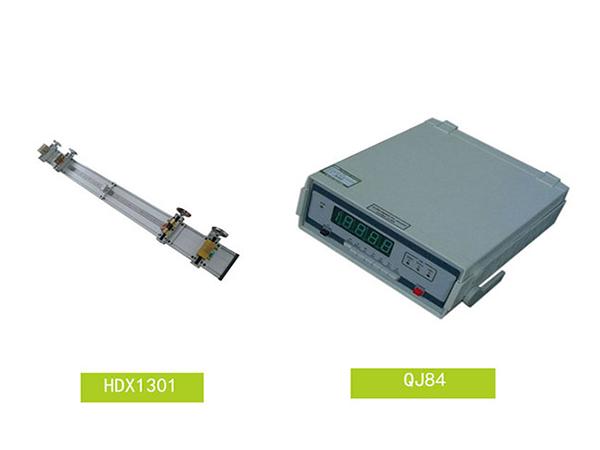

Adapting electrical bridge QJ84 double bridge, Optional.

Feature:

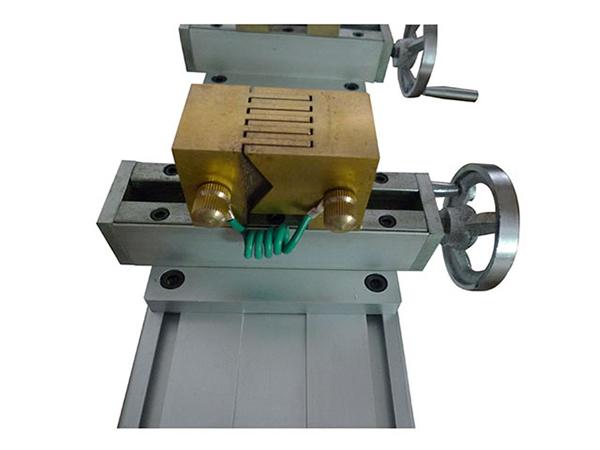

It adopts the fast clamping and withdrawing structure by using positive and negative threaded rod,s and the voltage and the current clamp are separated to improve the contact point of the sample. Aluminum alloy base plate, copper clamp.
