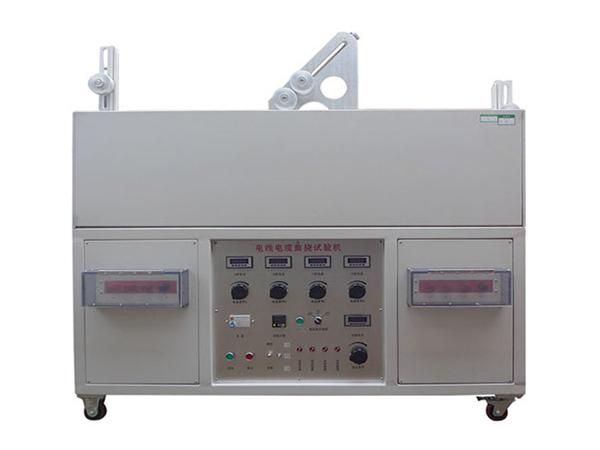

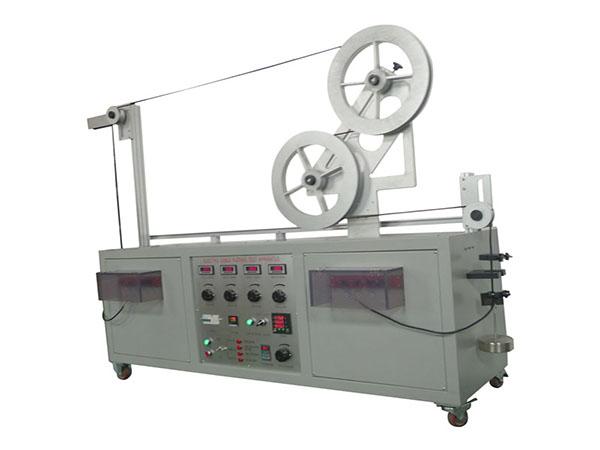

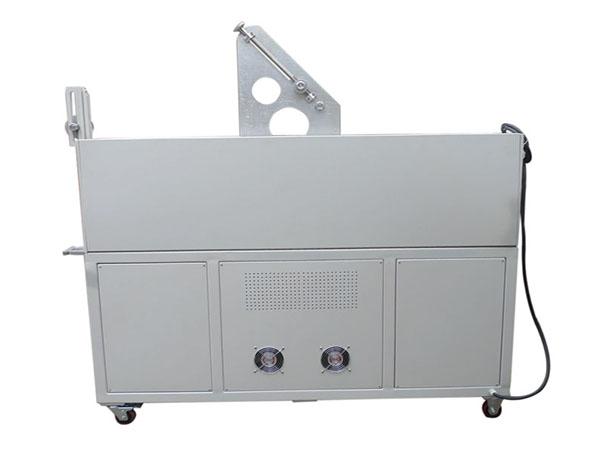

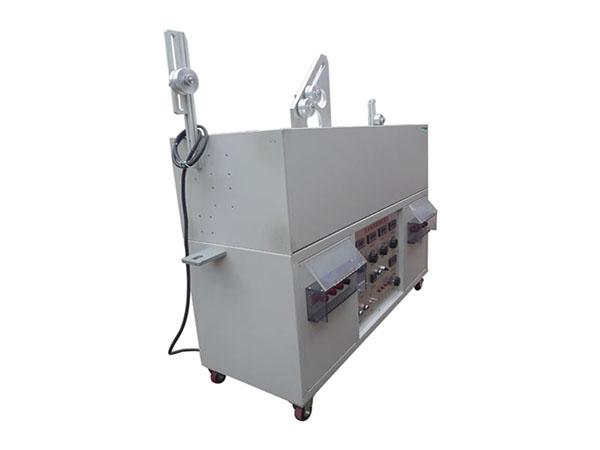

Cable Flexibility Tester

Standard:
IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 clause 3.1 Figure 1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

Application:
The cable flexibility tester is designed to measure the mechanical strength of finished flexible cables. This test does not apply to flexible cables with cores of nominal cross-section areas greater than 4mm2 and cables with more than 18 cores laid up in more than two concentric layers.

Test sample:
Completed flexible cables.

Parameters:

Power supply AC 220V/ 50HZ
Current loading of cores 0-25A
Voltage loading 0-400V
Testing speed 0.33m/S
Testing distance 1000±20mm
Suitable cores 2-18
Nominal cross-sectional area 0.2~4mm2

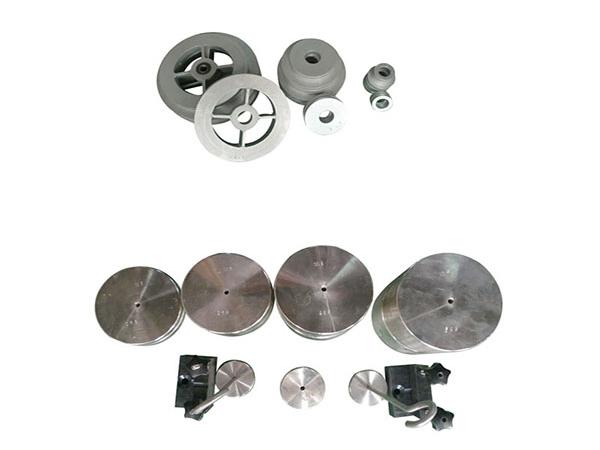

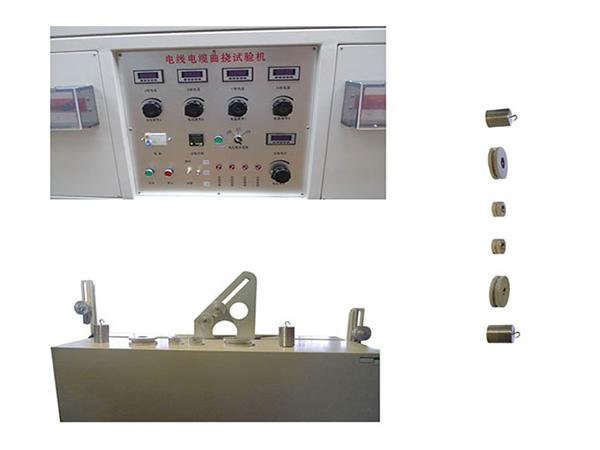

Diameter of pulleys 60, 80, 120, 160, 200mm ( Customer optional: Standard equipped 3pcs)

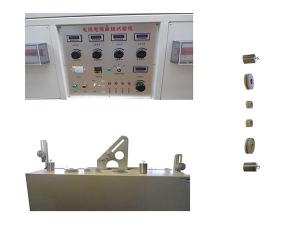

Combined weights 0.5kg, 1kg, 1.5kg, 2kg, 2.5kg, 3kg, 3.5kg, 4kg, 6kg, 7.5kg, 8kg

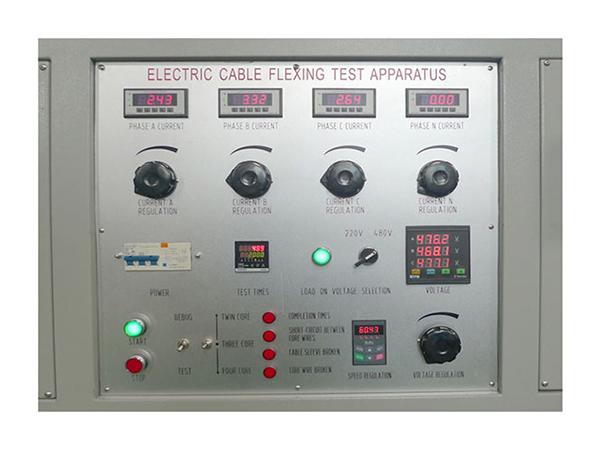

Fault testing Current interruption, short circuit between conductors, test and short circuit between the pulley.
