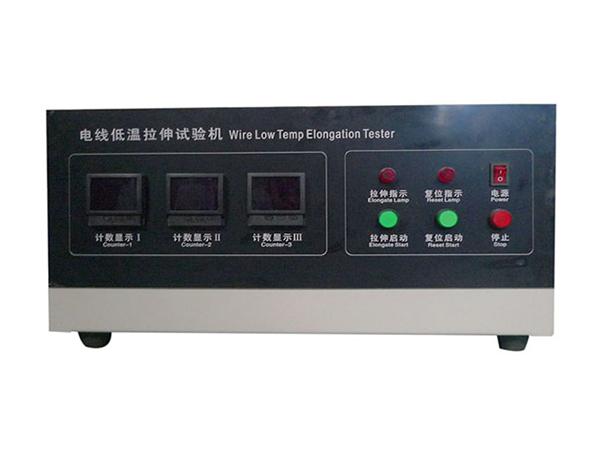

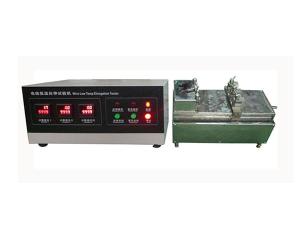

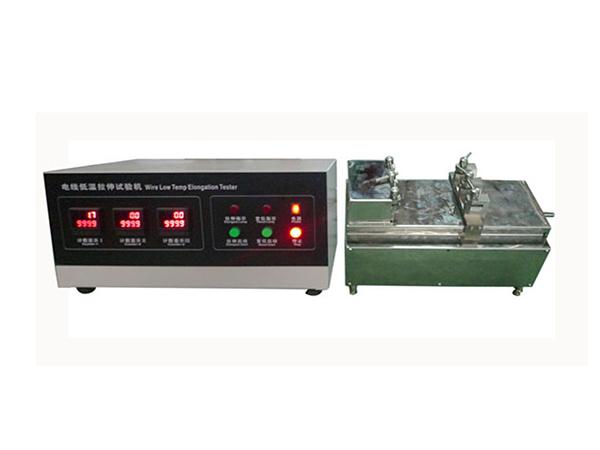

Cold Elongation Test Machine

Standard:
IEC60811-1-4 clause 8.3 and 8.4, common test methods for insulating and sheathing materials of electric and optical cables-part 1-4: Methods for general application-Test at low temperature.

Application:
The cold elongation test machine is designed to test the elongation effects of electric cables at low temperatures.

Test sample:
Rubber, insulating and sheathing materials of electric cables.

Parameters:

Item name Parameter data Item name Parameter data
Supply voltage 220V(AC) Displacement measurement Digital display±1mm
Chuck type Non self energizing Tensile speed (25±5) mm/min
Sample size Ⅰ#、Ⅱ#Dumbbell piece samples can bedone in a single operation 3 PCS

Feature:
The testing equipment is highly precise and measurable.
