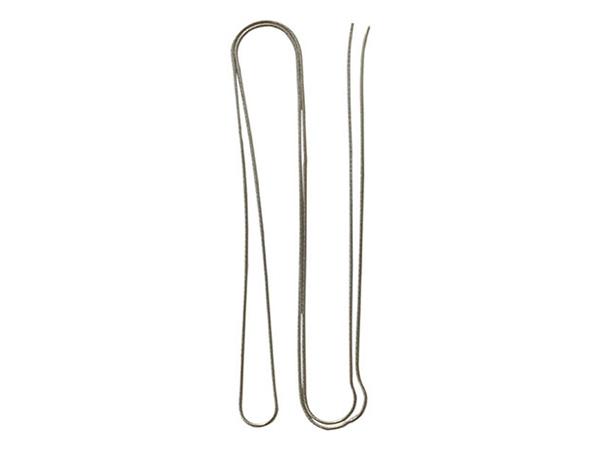

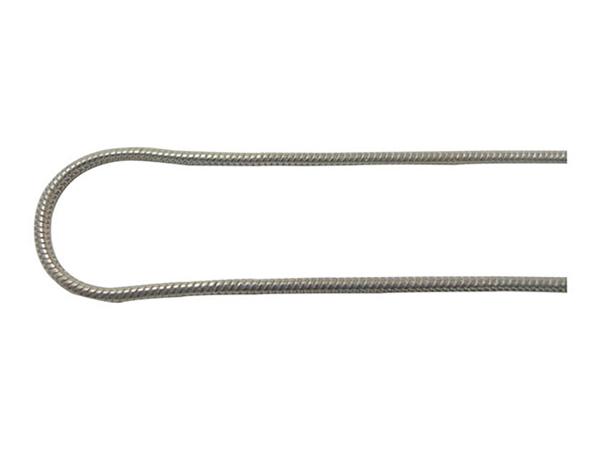

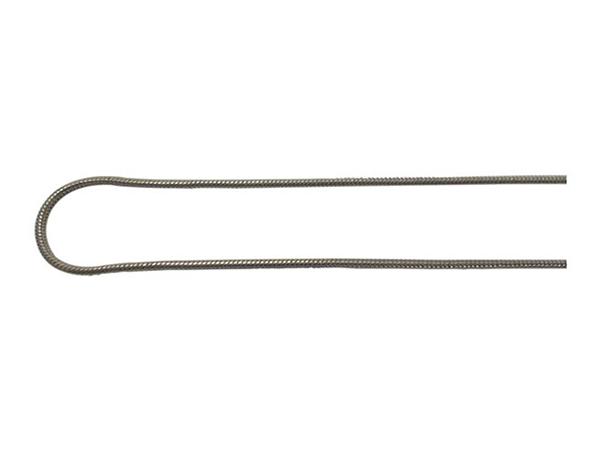

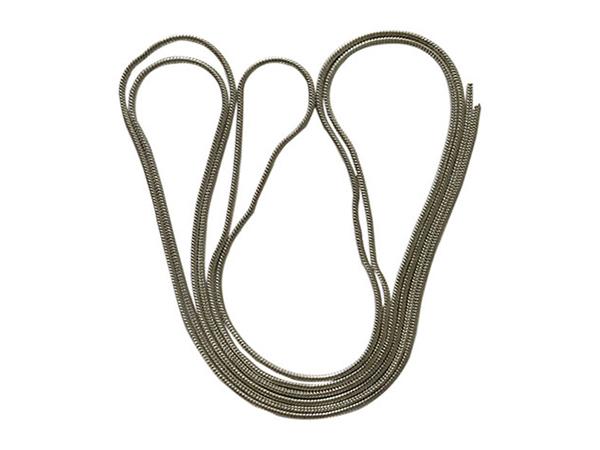

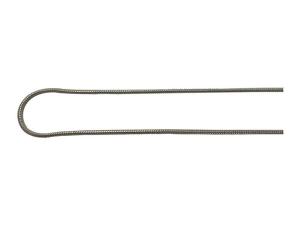

Test Chain

Standard:
IEC 60598-1: Luminaires – Part 1: General requirements and tests, figure 29.

Application:
The test chain was developed to verify the short-circuit protection to prevent the impairing of safety due to unintended short-circuiting of uninsulated SELV parts with opposite polarities. Shor-circuiting can lead to equipment failure and unsafe hazards.

Test sample:
SELV parts of luminaries

Parameters:
1. Material: of 63 % Cu/37 % Zn
2. Resistance: 2,5 Ω/m ± 20 %
3. Length: 1m
4. Diameter: 2±0.2mm

Feature:
In accordance with figure 29 and clause 4.26.3 requirements
