Standard:
IEC 60950-1, IEC 60598-1, IEC 60065

Application:

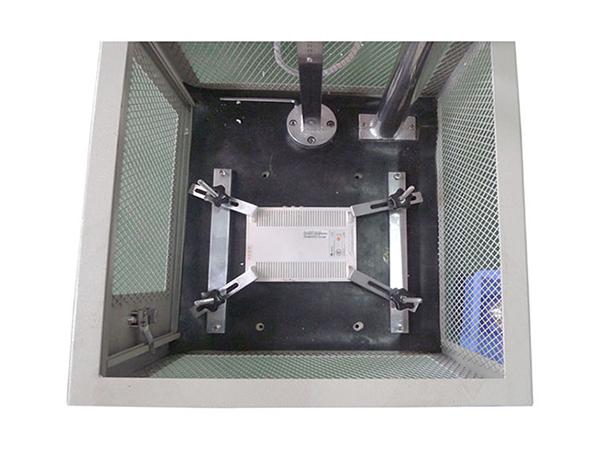

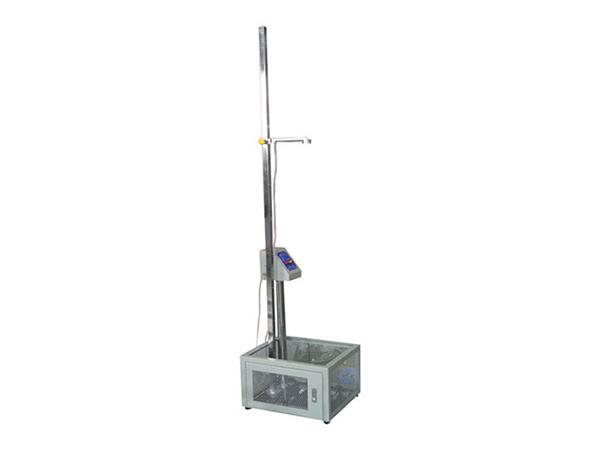

The ball drop impact test device is designed for drop impact testing for equipment enclosures.

Test sample:
Plastic, ceramic, glass, acrylic fiber and other materials

Parameters:
1. Power supply: 220VAC 50Hz
2. Drop ball control mode: DC electromagnetic control

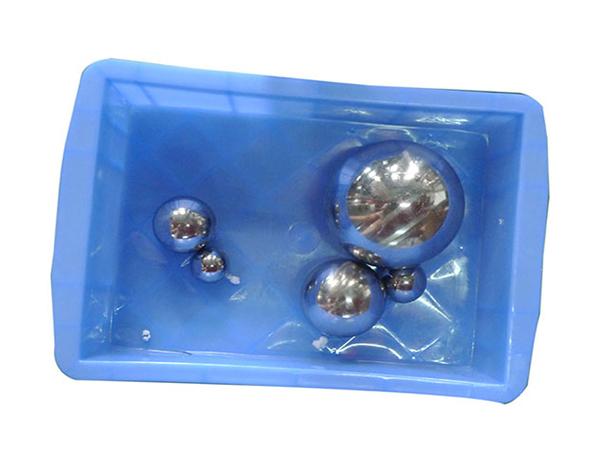

3. Impact steel ball: 110g, 130g, 64g, one each
4. Dimension: 500*450*2000mm
5. Weight: about 30kg

Feature:

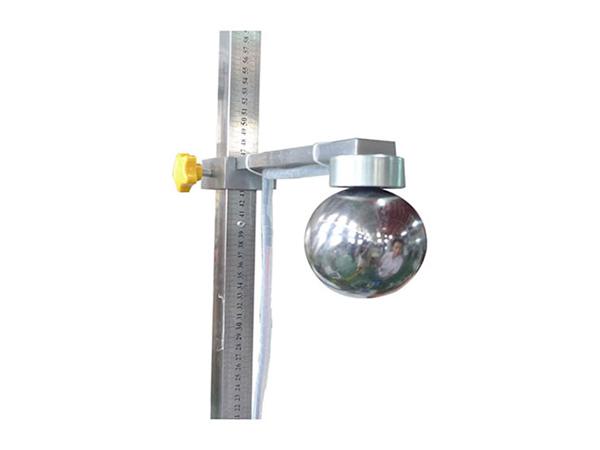

This device uses a steel ball of a specified weight raised to a certain height where it is dropped onto the test piece where the damage is then measured.
