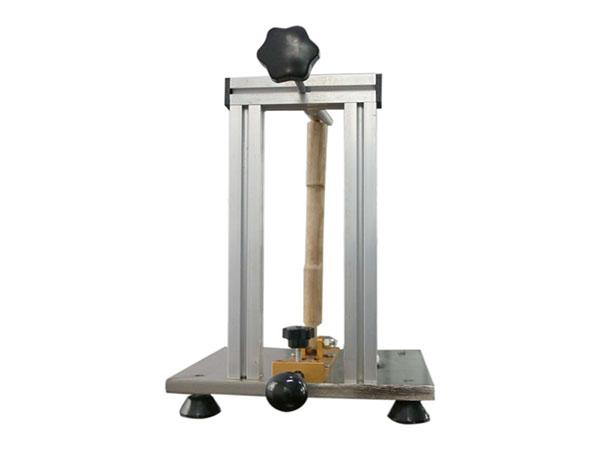

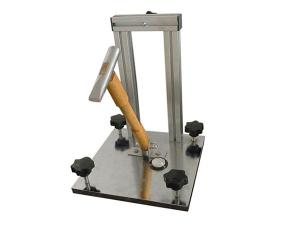

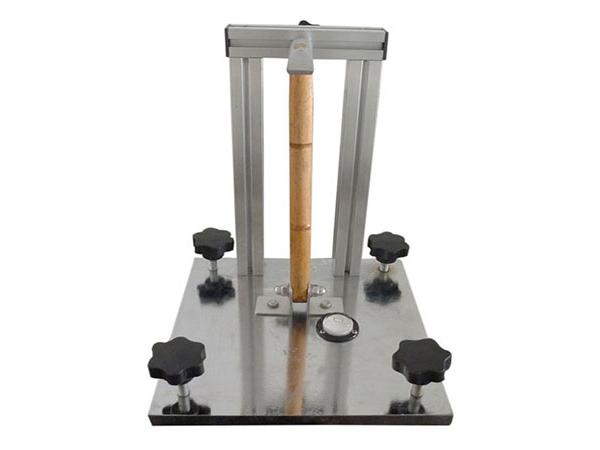

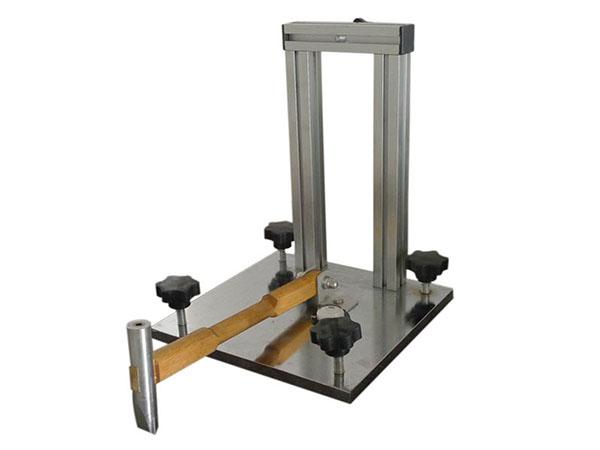

Drop Hammer Test Device

Standard:
YDT757

Application:
The drop hammer test device was developed for the adhesive force testing of hot dip galvanizing coatings.

Test sample:
Electroplated components and products

Feature:
The free fall hammer hits the sample to test whether the galvanized layer meet the standard requirements. This product is suitable for product quality inspection and control.

Parameters:
1. The mass of hammer: 210g±1g
2. The vertical height from the hammer center line to the base surface: 300mm±1mm
3. The material of the hammer handle: oak
4. Base: 250*250*15mm. provide level bubble, adjustable level
