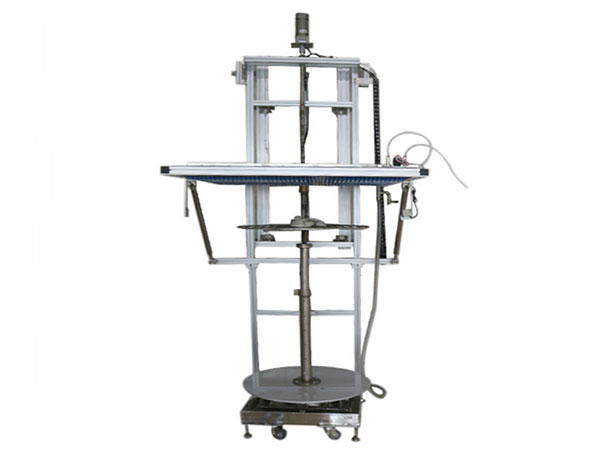

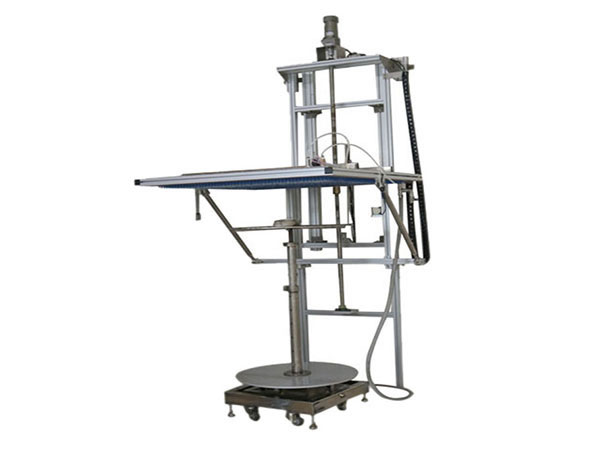

Vertical Water Drop Testing Machine

Standard
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX1 and IPX2, IEC60884-1, IEC60335-1, IEC60598-1.

Application
It is used for the testing of IPX1 and IPX2.

Test sample
The rain testing machine is used to determine water proof functions for devices, such as electronic appliances, lamps, electrical cabinets, electrical components, and cars.

Feature

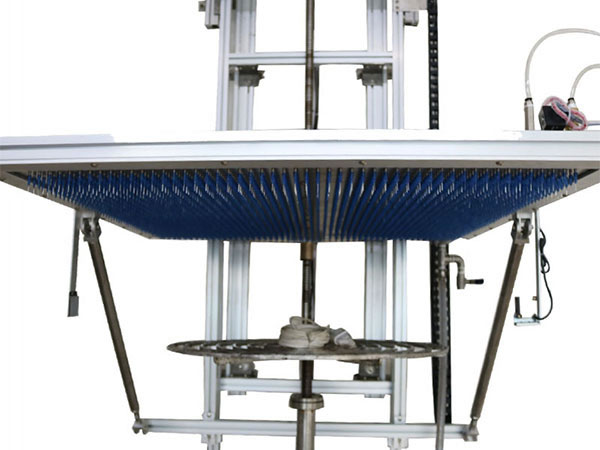

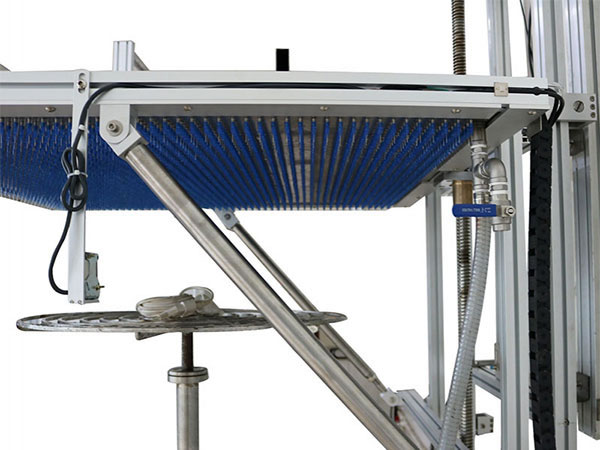

It is equipped with the rotatable objective table whose rotating speed is 1r/min for IPX1 test. It is also equipped with a 15°bevel for supporting samples for the IPX2 test. This device features a clean water filtration unit which can prevent the pinholes from jamming, it is controlled by PLC electrical control system, and touch screen operation.

Parameters

Item Parameter
Input power Single-phase AC220V,50Hz
Water supply Water flow rate>10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
Control and operation PLC intelligent control, 7 inch color touch screen operation
Testing time 0-999.9min
Water tank size Outline dimension:WDH=1100×800×350mm, fully enclosed water tank, SUS304 material
Drip test area 1000×600mm, customizable
Drip height 200mm, adjustable
Dripping rate (Water flow) 1+0.05 0mm/min or 3+0.05 0mm/min switchable, adopt digital controlled rainfall technology
Needle hole Φ0.4mm
Distance between holes 20mm
Rotary table Diameter:Φ600mm; Rotating speed1r/min. Can be paused 150s at four aspects,Load bearing≤150㎏electrical equipment
Supporting sample 15°bevel
Water tank lifting drive Motor drive, screw guide rail to ensure the stable lifting and self-locking
Installation method Wall mounted or floor type
Site requirements Dedicated IP waterproof test room, The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation
Area covered WDH =1500mm×1500mm×2650mm, the size can be set according to customer's requirements
