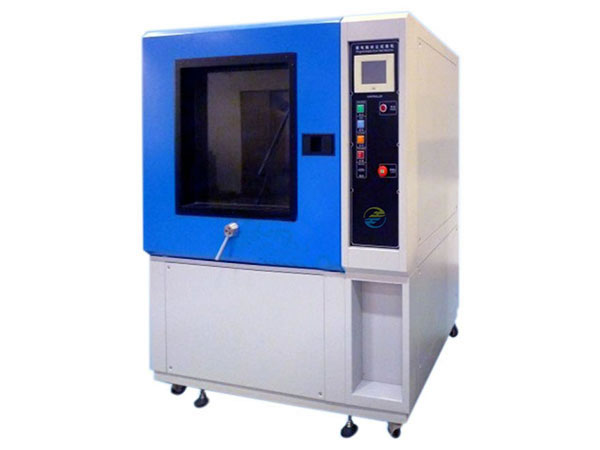

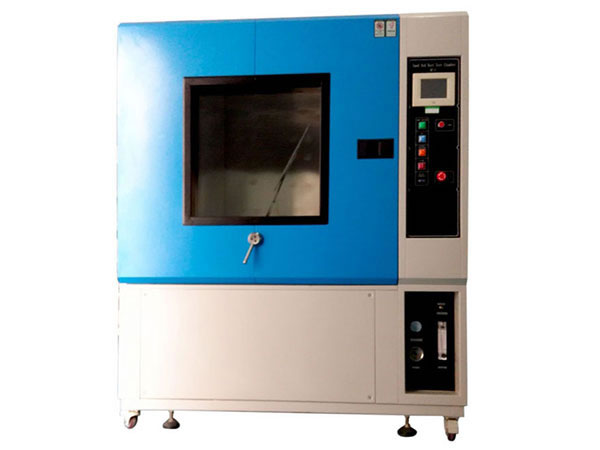

Sand and Dust Test Chamber

Standard
IEC60068-2-68 Test L:Dust and Sand La2, IEC60529 Degrees of protection provided by enclosures (IP Code), IEC60034-5,IEC60598-1 and ISO/DIS12346.

Application
The sand and dust test chamber is designed to verify the sealing performance of the enclosures of electronics. This is particularly important for equipment used outdoors such as automobiles, motorcycles, etc.

Test Sample
Electrical and electronic products.

Feature
The main effects of sand and dust on the product are as follow
1. Intrude into sealing element and enclosures
2. Interfere with electrical performance
3. Block and wear bearings and other moving parts
4. Abrasive surface, lubricant pollution
5. Blocking ventilation opening, pipeline, filters, and other operation holes

Main Features and Functions of Sand and Dust Chamber
1. The chamber body is made of stainless steel
2. PLC control, touch screen operation, it can be controlled by manual and automatic operation

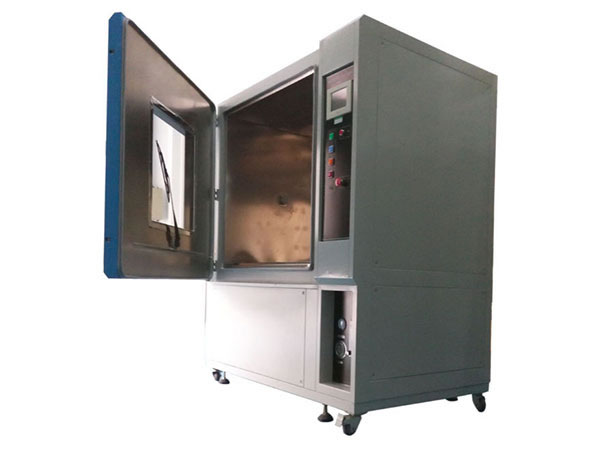

3. Large observation window with wiper
4. Configuration of vacuum pumping system
5. The size of the inner chamber can be customized according to the size of the test sample.

Parameters

Model HH0810
Input voltage AC 220V±10 % 50Hz

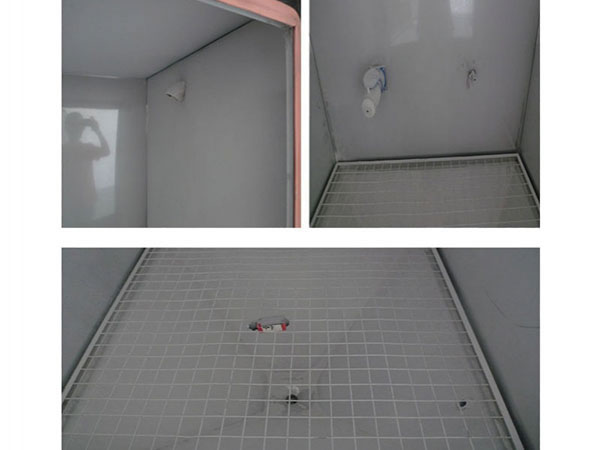

Inner chamber size WDH=800×800×800mm
Metal wire and sieve pore Ф50µm, 75µm
Test dust Dry talcum powder which can through the sieve pore
Dust concentration The amount of dust in the test chamber is 2Kg /m³
Air flow speed ≤2m/s
Testing time 0.01s~99 hours 59min; Arbitrary preset
Ash blowing cycle control 1s~9999min
Vacuum pump speed ≤1L/1s Arbitrary adjustable
Machine power ≤1500W
Ambient temperature, humidity and site requirements 0~40℃, ≤85%RH, no violent shaking, shock, vibration, no dust, corrosive atmospheric environment
Outer chamber size L*W*H=1000mm×1100mm×1650mm
