IPX3, IPX4 Water Protection Tester

Standard
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX3 and IPX4, IEC 60884-1, IEC 60335-1, IEC 60598-1.

Application
It is used for the testing of IPX3 and IPX4.

Test Sample
The test apparatus is designed to measure the water proof functionality of various electrical appliances.

Feature

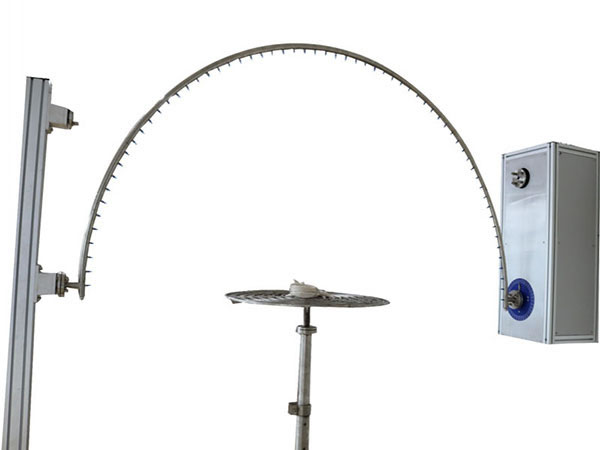

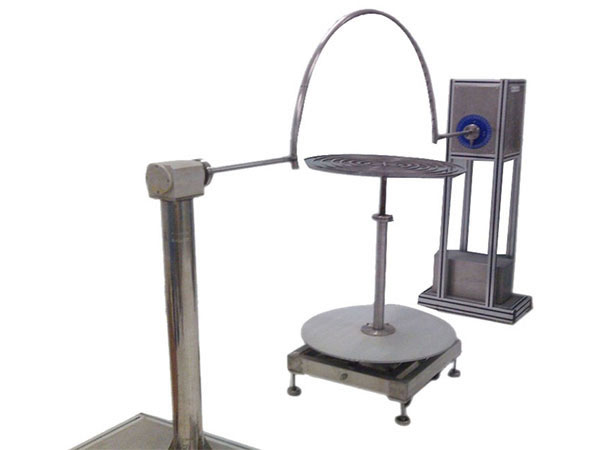

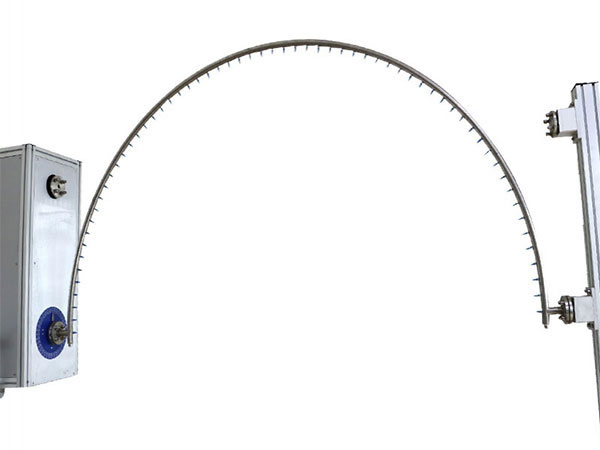

There are two models: Open type and chamber type. Using PLC control, the motor drive oscillating tube rotates to uniformly test the workpiece.

Parameters

Item Parameters
Input power Single-phase AC220V,50Hz
Water supply Water flow rate>10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
Control and operation PLC intelligent control, 7 inch color touch screen operation

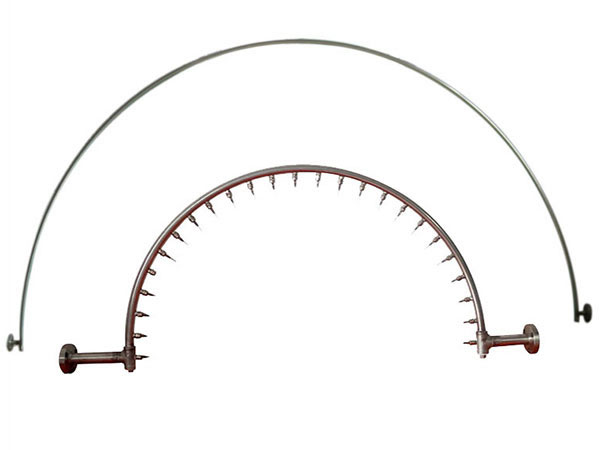

The size of the oscillating tube R200 , R400, R600, R800, R1000, R1200, R1400, R1600mm. Optional, stainless steel
Needle hole Φ0.4mm
Included angle of two holes IPX3:120°; IPX4:180°
Pendulum angle IPX3:120°(±60°); IPX4:350°(±175°)
Raining speed IPX3:4 s/time(2×120°); IPX4:12 s/time(2×350°);
Water flow 1-10L/min adjustable
Testing time 0.01S~99hours 59min, can be preset
Rotary plate Diameter:Φ600mm; Rotate speed:1r/min, Can be paused at four aspects, Load bearing ≤50㎏ electrical equipment
Pressure gauge 0~0.25MPa
Site requirements Dedicated IP waterproof test room, The ground should be flat with illumination 10A waterproof leakage switch (or socket)used for equipment. With good function of inflow and drainage. Ground installation
Area covered It is set according to the selected oscillating tube
