Standard
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX3 and IPX4, IEC60884-1, IEC60335-1, IEC60598-1.
Application
It is used for the testing of IPX3 and IPX4.
Test Sample

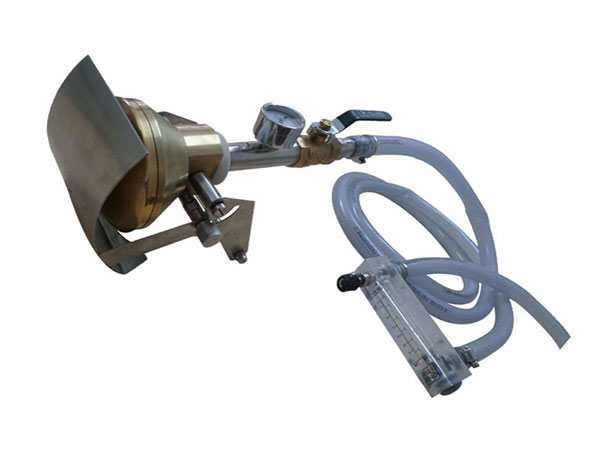

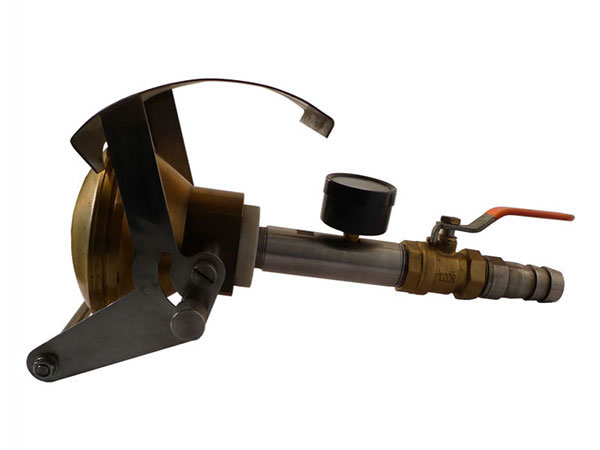

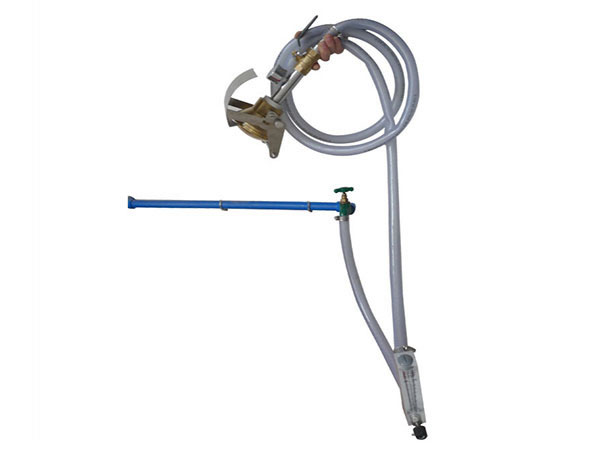

The handheld spray nozzle tester is designed to test waterproof functionality for various types of electrical equipment used in all sorts of applications.
Feature
The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.
Parameters
Item | Parameter |
Input power | Single phase AC220V,50Hz |
Water supply | Water flow rate is >10L/min±5%, pressure is 50~150kpa clean water without inclusion. |

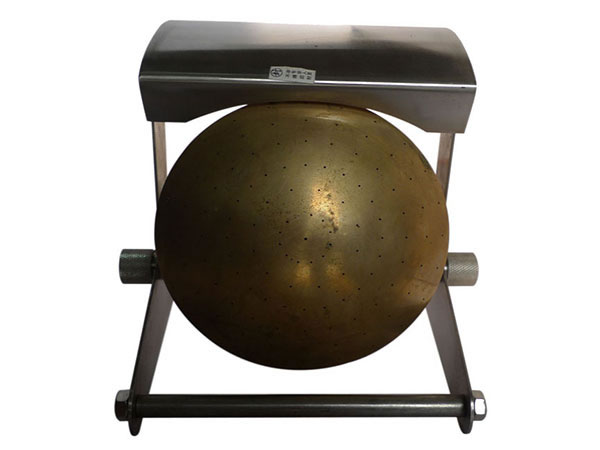

Spray nozzle parameters | External diameter: Ф102mm Spherical diameter: SФ75.5mm 121 holes of Ф0.5mm 1 hole at the centre 1 inner circles of 12 holes at 30°pitch 4 outer circles of 24 holes at 15°pitch Moving shield-Aluminum Spray nozzle-Brass |
Water flow | 10L/min±5%, Flow meter is adjustable |
Pressure gauge | 50~150Kpa, Range of pressure gauge 0~0.25Mpa |
Baffle | Removable |
Site requirements | Dedicated IP waterproof test room, The ground should be flat with illumination With good function of inflow and drainage. |
Testing time | Manual control, at least 5min |
