IPX5, IPX6 Handheld Water Jet Nozzle Tester

Standard
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX5 and IPX6, IEC60884-1, IEC60335-1, IEC60598-1.

Application
It is used for the testing of IPX5 and IPX6.

Test sample
The handheld jet nozzle tester is designed to test the waterproof capabilities of various electronics.

Feature

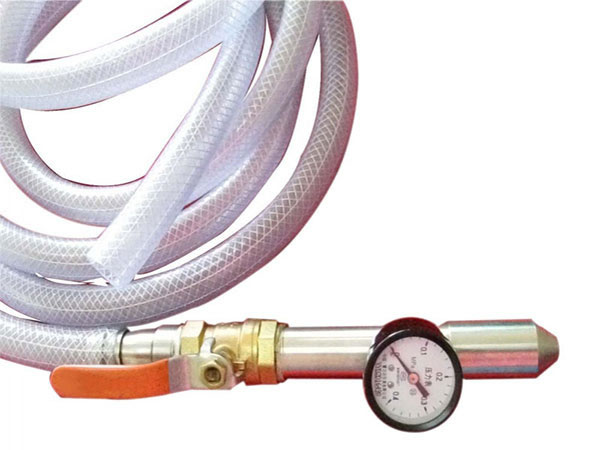

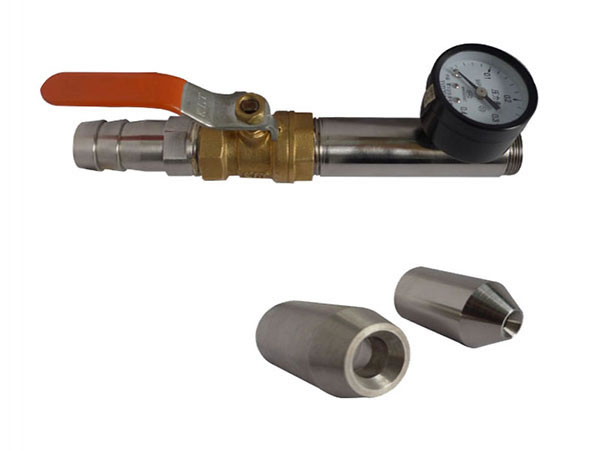

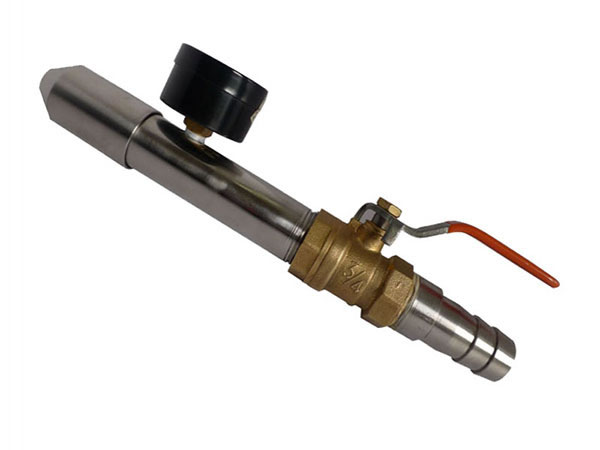

With a pressure gauge, it can be used by replacing the nozzle, it also can complete our waterproof testing line.

Parameters

Model HH0804-1 HH0804-2
Item IPX5 IPX6

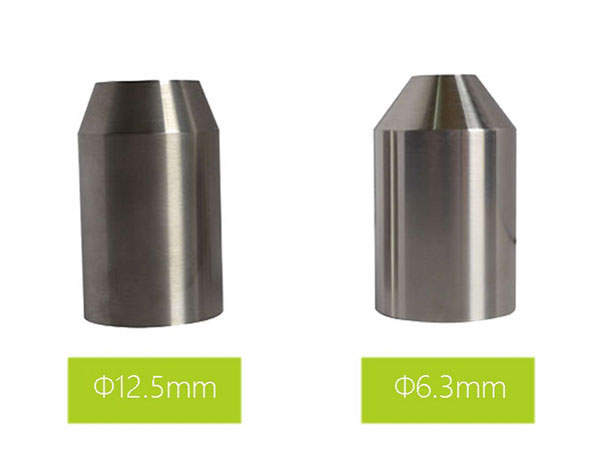

The nozzle diameter Ф6.3mm Ф12.5mm
Water flow 12.5±0.625L/min, Flow meter is adjustable 100±5 L/min, Flow meter is adjustable
The distance from jet nozzle to enclosure 2.5~3m
Testing time Not less than 1min/m²(not less than 3 mins)
Pressure gauge 0~0.25MPa
Site requirements Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation
Water supply Water flow rate > 12.5L/min±5% clean water without inclusion.
It can be achieved by the stainless steel water tank and pressurized equipment
Water flow rate >100L/min±5% clean water without inclusion.
It can be achieved by the stainless steel water tank and pressurized equipment
