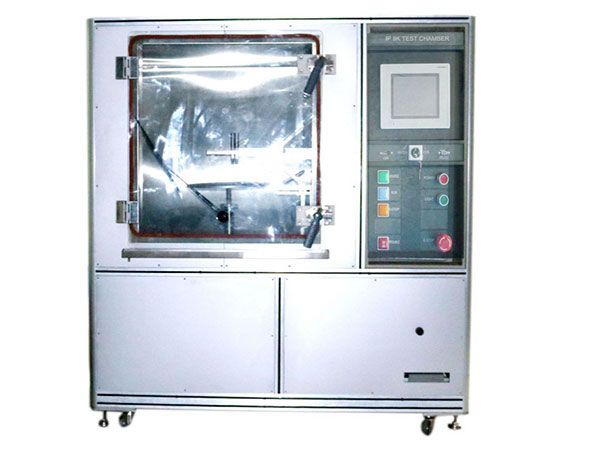

IPX9 Waterproof Test Equipment

Clause 14.2.9 of EN60529:1992+A2:2013, ISO 20653-2006, ISO30653-2006, clause 4.9.2of QC/T 417.1-200, clause 6.2.7 and 6.2.8 of TOYOTA ENGINEERING STANDARD TSC1000G. DIN40050-9 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of foreign material including dirt and water.

It is used to inspect the IEC enclosures of electrical equipment (IP supplementary code test), and it is applicable for waterproof testing of the electrical and auto parts under high temperature and high pressure conditions.

Test Sample
With IPX9 degrees waterproof test products, such as automobile and motorcycle parts, electrical and electronic industries.

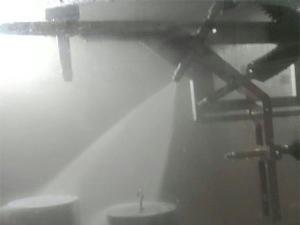

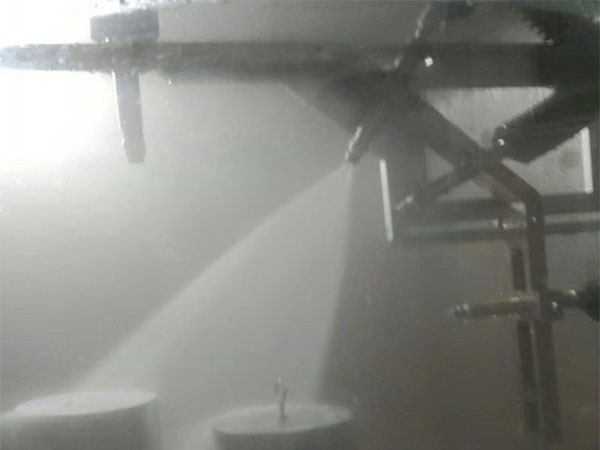

The machine is designed for testing in both high pressure and high temperature conditions.


Test Water Temperature 80±5 ℃
Nozzle specification It is designed according to the standard figure
Nozzle number 4 (0°, 30°, 60°, 90°)
Spray pressure 8MPa-10MPa (adjustable)
Spray flow 14l/min-16l/min (change according to pressure)
Spray distance 100~150mm adjustable (The maximum side of the test product shall not exceed 450mm)

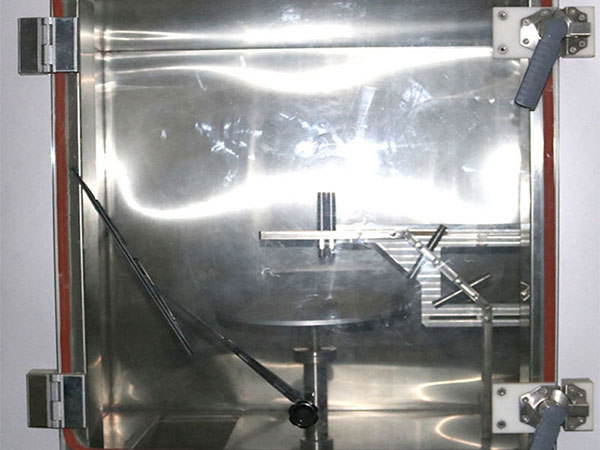

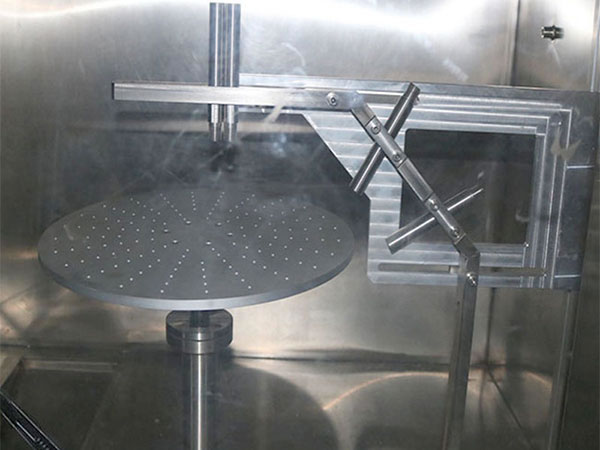

Sample support platform ¢400mm
Sample support platform rotate speed 4-6r/min
Sample support platform bearing ≤15kg
Sample support platform lift 300mm~400mm (Manually)
Power supply for test sample Provide interface for test product, 4 core wire power supply, the maximum 30A
