Standard
Clause 23.3 and 25.14 of IEC 60335-1 Household and similar electrical appliances - Safety - Part 1: General requirements, IEC60335-2-14 and etc.
Application

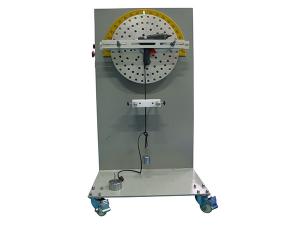

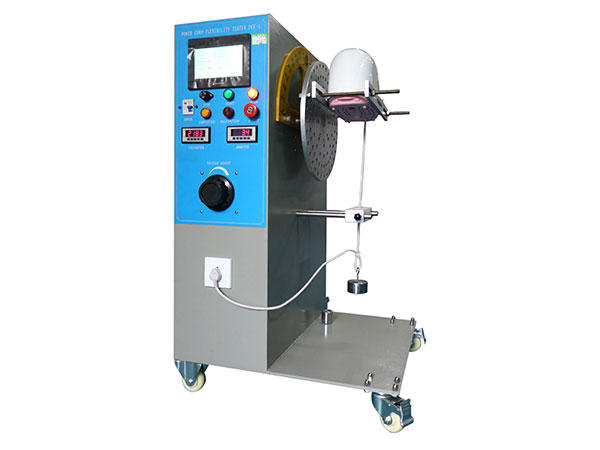

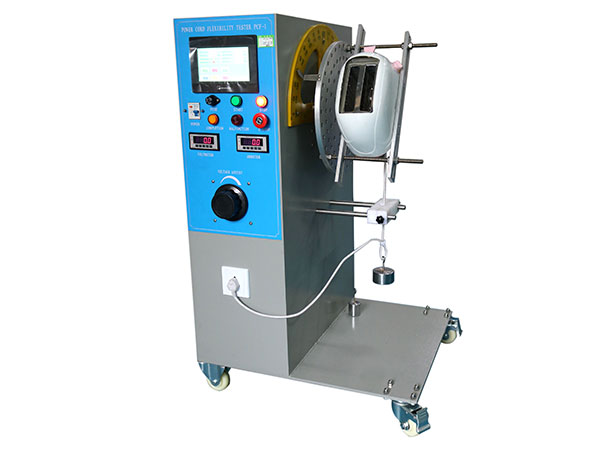

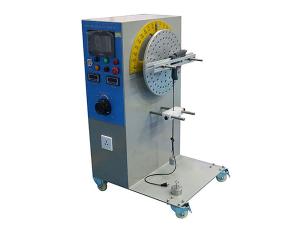

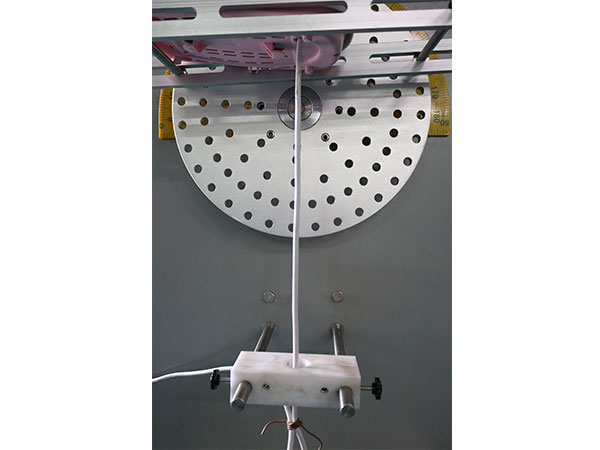

The cord flexing test apparatus is used to check that the power cord of small household appliances are protected against excessive flexing.
Test Sample
Small household appliances, such as coffee pots, electric irons, toasters, lamps, etc.
Feature
The test stations, test angles, load voltage can be customized. The test cycles, speed, voltage and etc. can be preset.
Parameters
| Model | |||
| Input Power | AC220V 50HZ | AC220V 50HZ | AC220V 50HZ |
| Control Method | Electrical control, buttons operation | PLC control, touch screen operation | PLC control, touch screen operation |
| Station | One | One | 3 (can upgrade to 6 stations), synchronous |
| Drive Mode | Electrical | Electrical | Electrical |
| Flexing Angle | Unilateral 45°. 60°. 90°, mechanical adjustable | 0-360°, preset on the touch screen | 0-360°, preset on the touch screen |
| Flexing Speed | 0-60cycles/min, frequency control | 0-60cycles/min, can be preset | 0-60cycles/min, can be preset |
| Test Cycles | 0-999999, can be preset | 0-999999, can be preset | 0-999999, can be preset |
| Loading Weight | 5N,10N | 5N,10N | 5N,10N |
| Loading Voltage | 0-250V, can be regulated | 0-250V, can be regulated | - |
| Sample judgment | Judge the conduction by current | Judge the conduction by current | Judge the conduction by current |
