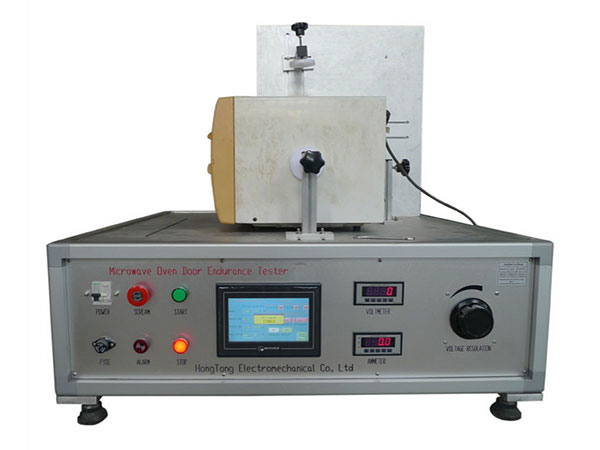

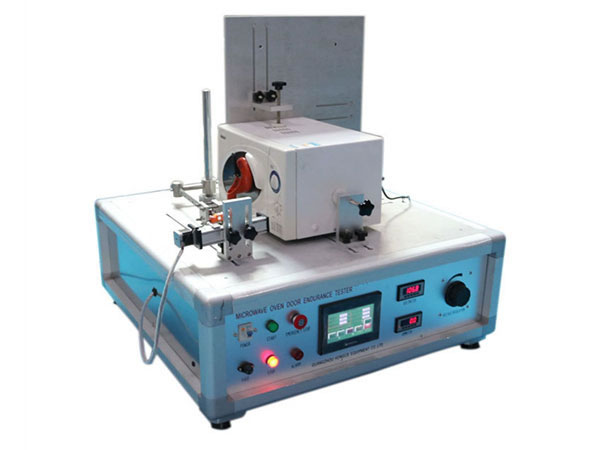

Microwave Oven Door Endurance Tester

Standard
IEC 60335-2-25 household and similar electrical appliances - safety: part 2-25:particular requirements for microwave ovens, including combination microwave ovens, clause 18.

Application
The device is used to test the mechanical endurance of microwave oven door systems.

Test Sample
Microwave oven, oven

Feature
The equipment is easy to use and tests the door hinges and door sealing systems for microwave doors.

Parameters

Control PLC
Display True color liquid crystal display (7 Inch Touch screen)
Frame structure High grade aluminium profile
Power supply AC 220V 50HZ
Test times 0-999999 preset, automatic stop when test time finished
Open/Close time 0-9999S preset
Open/Close rate Adjustable
Open angle 0-180°preset
Station One station(left open or top open)

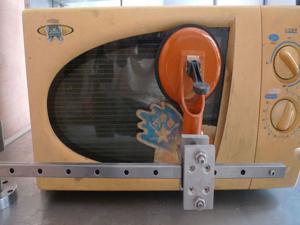

Door unlock Eccentric wheel mechanism automatic unlock the door lock
Dimension 1000*1000*800mm
Load provided with a 10A power socket, can be used for samples below 2000W
