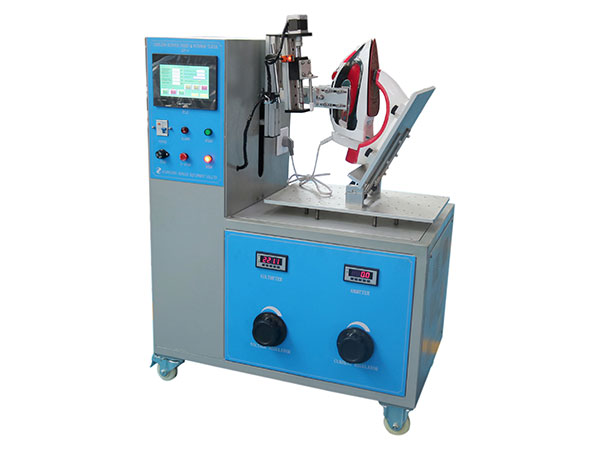

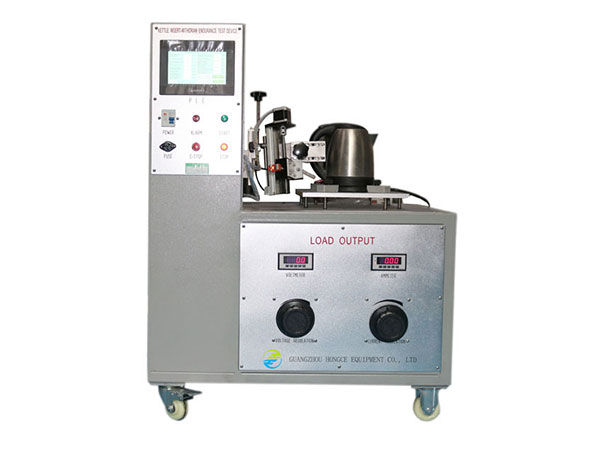

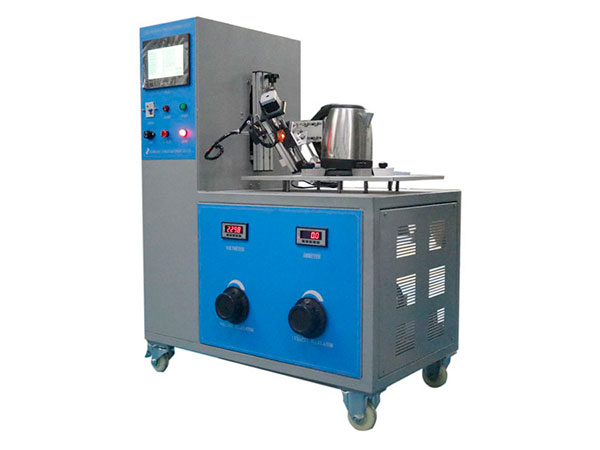

Kettle, Electric Iron, Cordless Blender Insertion Force Tester

Standard
IEC 60335-2-14 Clause 22.103, IEC60335-2-3 Clause 22.105, IEC60335 -2- 15 clause 22.103 and etc.

Application
Cordless electric kettles, cordless irons, cordless blenders, the contacts shall be constructed so that any electrical or mechanical failure that occurs during normal use shall not be dangerous and shall be verified by a plug-in test.

Test Sample
Cordless electric kettles, cordless irons, cordless blenders

Feature
The test device can be connected to an external load or has built-in load. The test cycles can be preset (maximum 999999), the test system can record the test cycles and conduction cycles automatically during testing, when the preset test cycles have been completed, the test device will stop testing automatically.

Parameters

Model J0613 J0613A
Input Power AC220V 50HZ AC220V 50HZ
Control Electrical control, Buttons operation PLC control, touch screen operation
Station Single station Single station
Drive Method motor-driven motor-driven
Test Sample Cordless water kettle Cordless water kettle/iron/blender
insert & Plug Stroke 100mm 0-100mm, can be preset on touch screen
insert & Plug Speed 0-30cycles/min, frequency control 0-30 times/min, can be preset on touch screen
Test Cycles 0-999999, can be preset 0-999999, can be preset on touch screen
Conduction Cycles 0-999999, can be displayed 0-999999, can be displayed

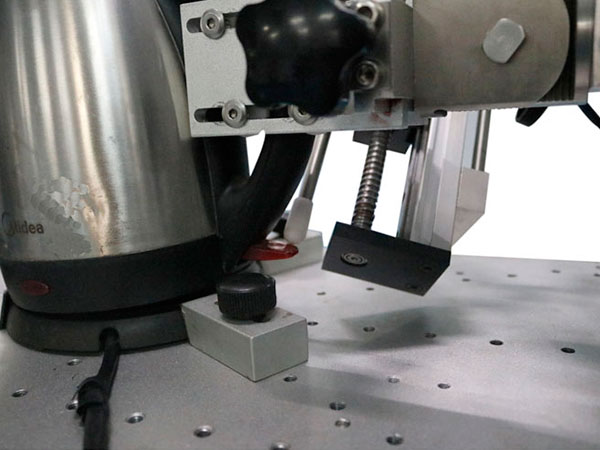

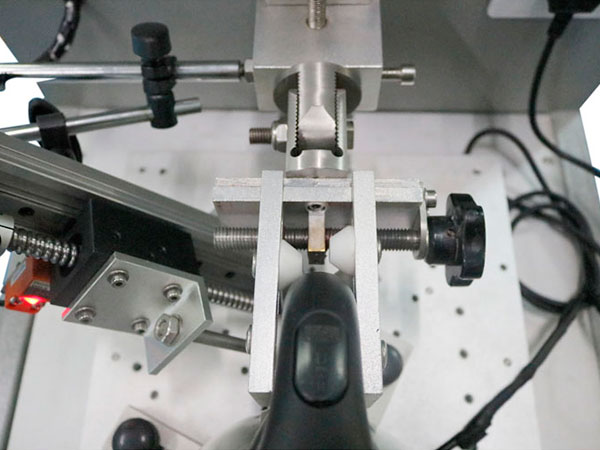

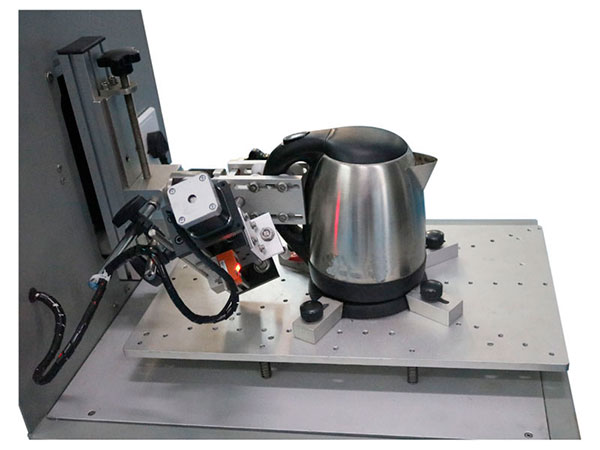

Mechanical action insert & plug action insert & plug action and kettle switch open and close movement
Load External 0-250V, 0-15A Built-in 0-250V, 0-15A
Sample judgment Judge conduction according to the current Judge conduction according to the current
Dimensions and Weight 1000×500×1200mm, 130kg 1000×500×1200mm, 200kg
