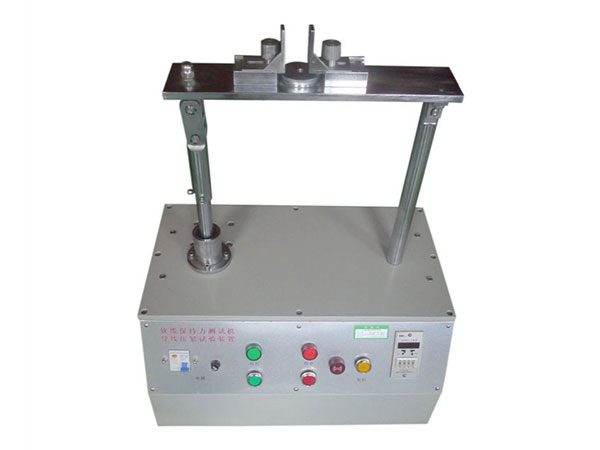

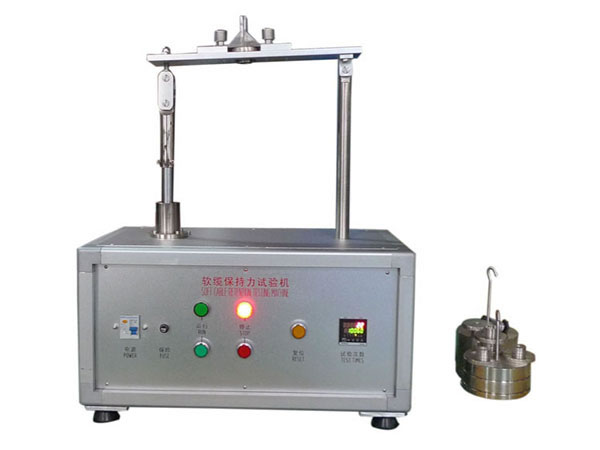

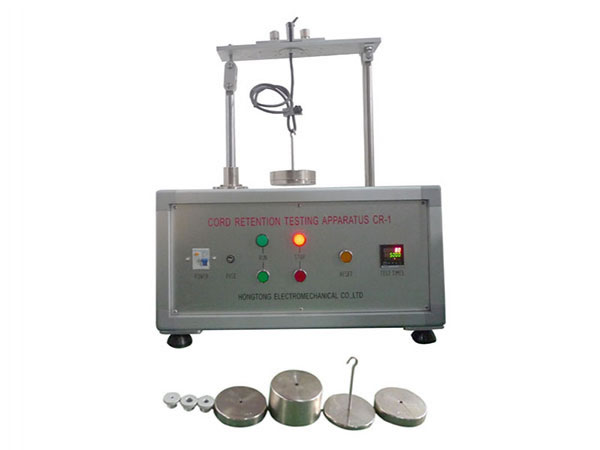

Cord Retention Testing Apparatus

Standard
IEC 60884-1 2013 clause 23.2, VDE 0620

Application

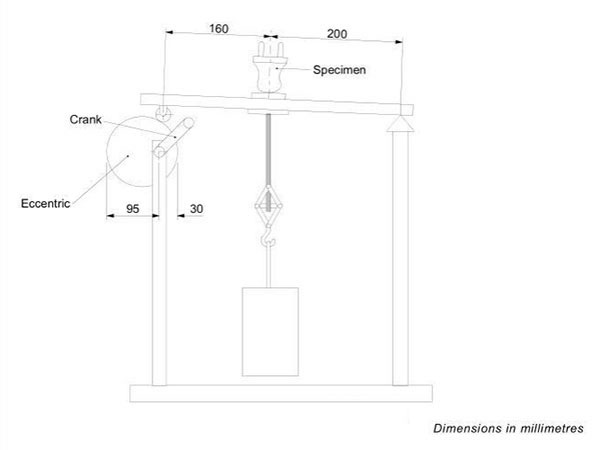

This device is used to test the firmness of the plug and cable of electrical appliances.

Test Sample
Non-rewirable plug and socket-outlet, rewirable plug and socket-outlet

Feature
In accordance with standard requirements.

Parameters
1. Power supply: AC 220V 50Hz

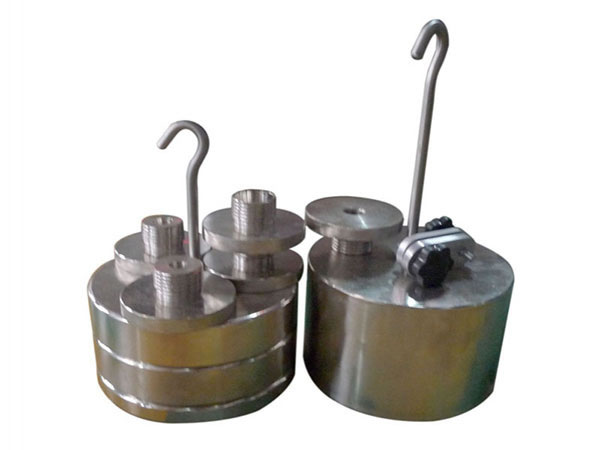

2. Weights: 10N*1, 60N*1, 20N*2
3. Rate of testing: 60 times / min
4. Test times: 0-9999, preset. Default 100 times
5. The pull force to the flexible cable

The rated current of the flexible cable(A) The rated voltage of the flexible cable(V) The tensile force
2.5 - 50
2.5~16 < 250 60
2.5~16 >250 80
>16 - 100
