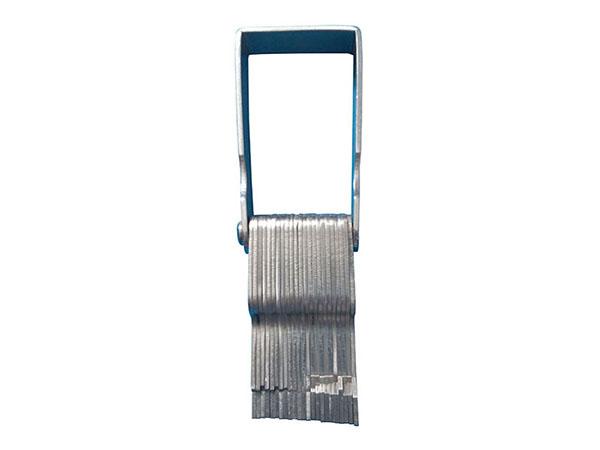

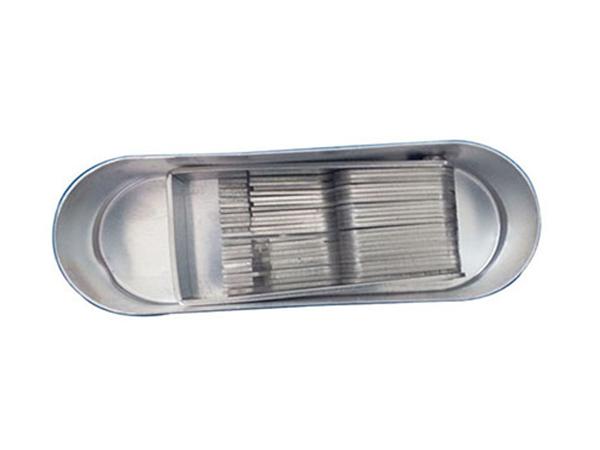

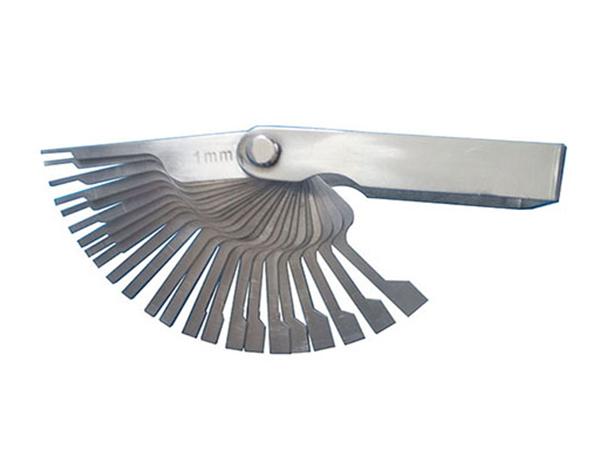

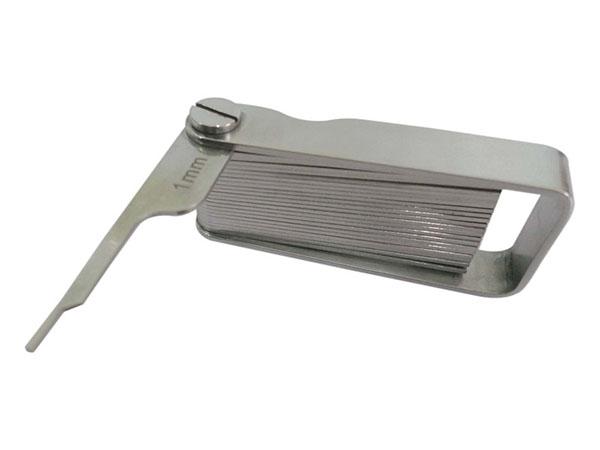

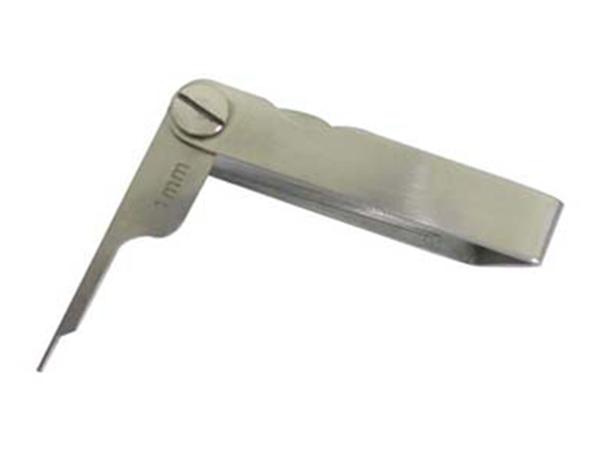

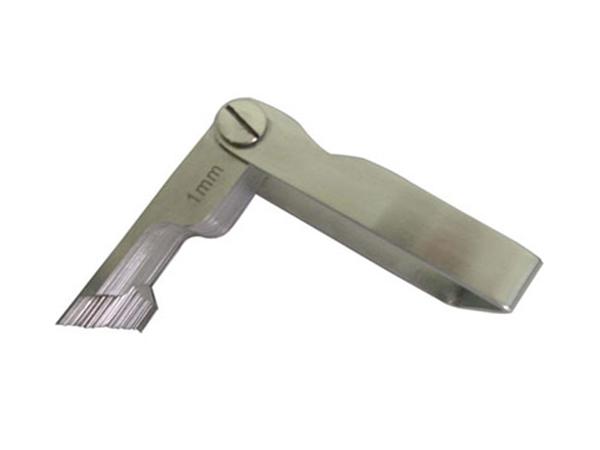

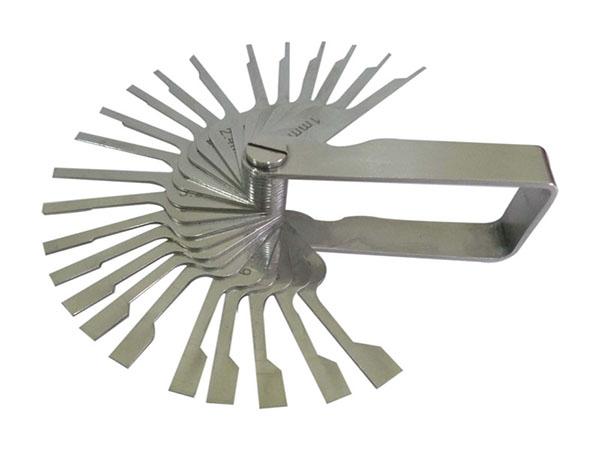

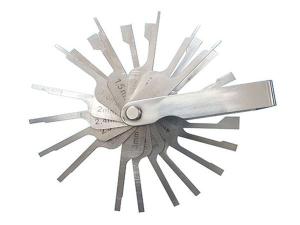

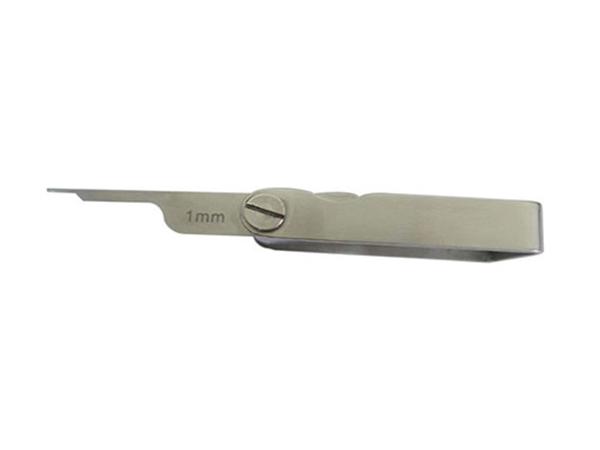

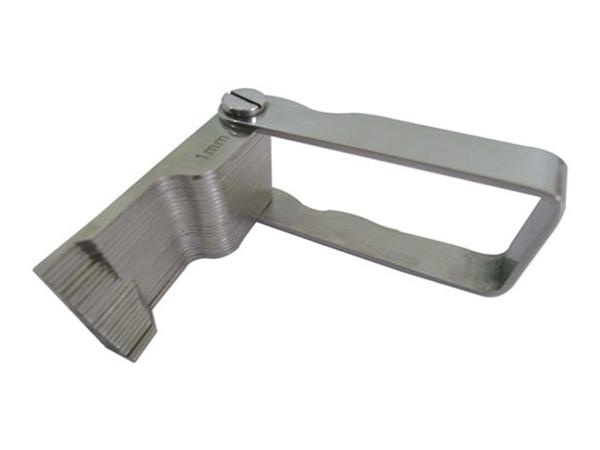

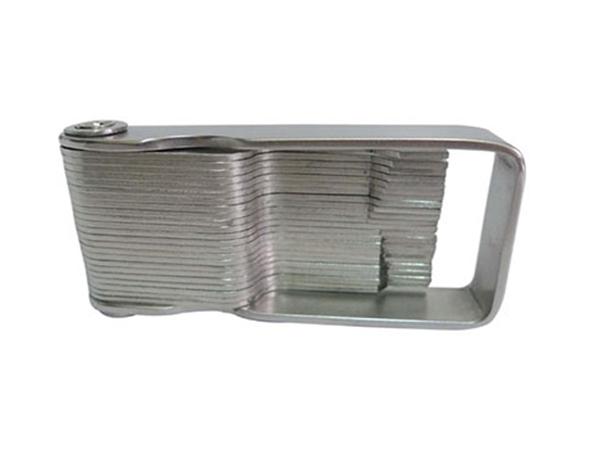

Creepage Distance Tester

Standard:
IEC 60884-1 2013 clause 27, IEC60598, IEC60335

Application:
The HongCe creepage distance tester was designed and manufactured to test the creepage distance and clearance through sealing compounds between two conductive parts or from a conductive electronic component to the surface of the device.

Test sample:
Electrical conductive parts

Parameters:

Model Size specification
HC936 1/1.5/2/2.5/3/4/6/8, 8 cards in all
HC936A 1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8, 15 cards in all
HC936B 1/1.2/1.4/1.5/2/2.4/2.5/2.8/3/3.2/3.3/4/4.5/5/5.5/6/6.3/6.4/6.5/7/8, 21 cards in all
HC936C 1/1.2/1.4/1.5/1.6/2/2.4/2.5/2.8/3/3.2/3.3/3.5/4/4.5/5/5.5/6/6.3/6.4/6.5/7/8, 23 cards in all
HC936D 1/1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2/2.5/2.8/3/3.2/3.3/4/4.5/5/5.5/6/6.3/6.5/7/8/9/10, 27 cards in all

Features:
Stainless steel, pawn type component verifies the creepage distance between conductive components
