Standard:
Confirm to the IEC60320-1 clause 16 figure12 standard requirement.

Application:
The coupler withdrawal testing apparatus measures the maximum force necessary to remove the connector from the appliance inlet and the minimum force necessary to withdraw a single pin gauge from the appliance inlet. It is also used for testing connectors in high temperature conditions in which materials may expand.

Test sample:
Coupler.

Features:

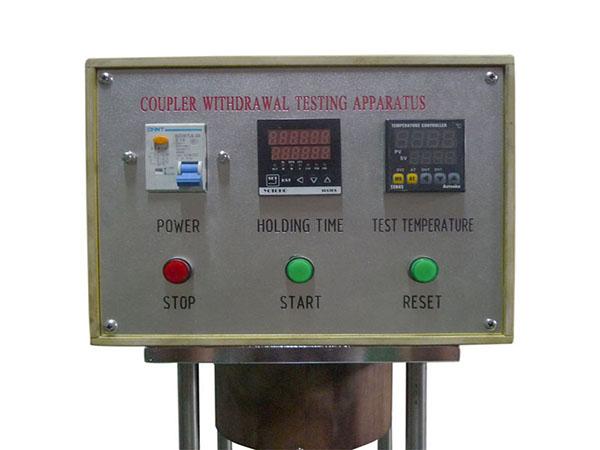

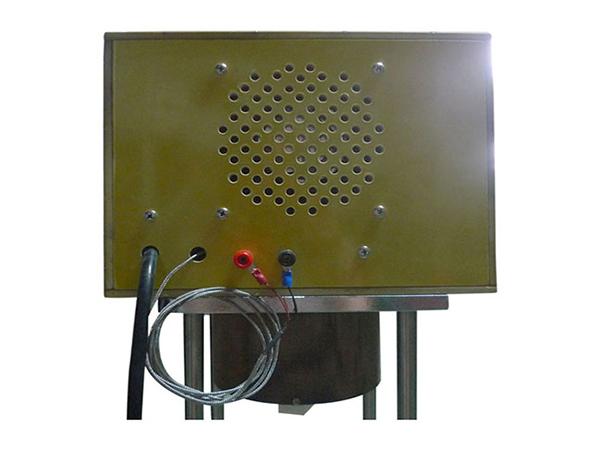

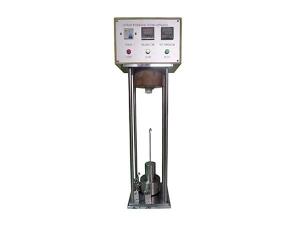

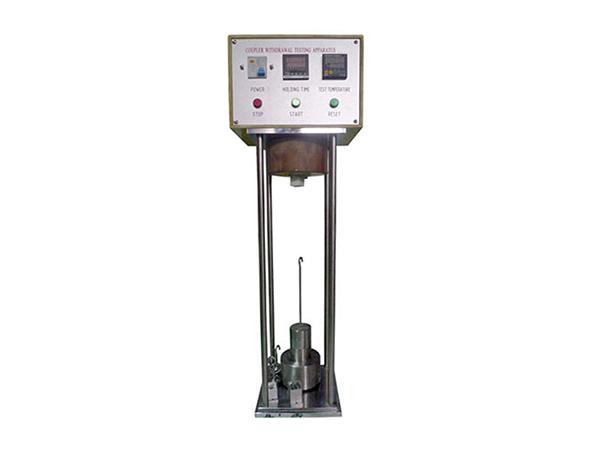

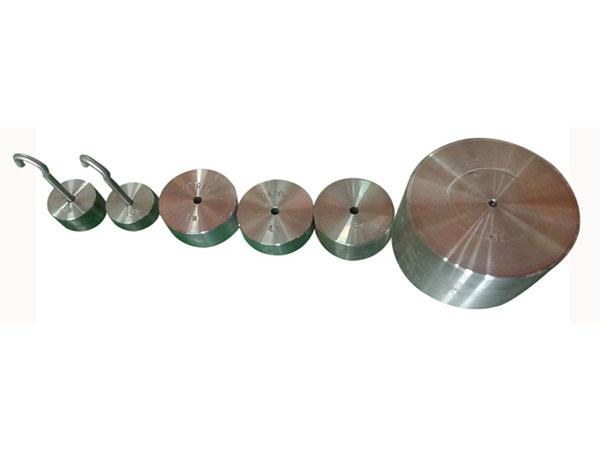

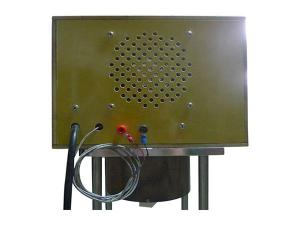

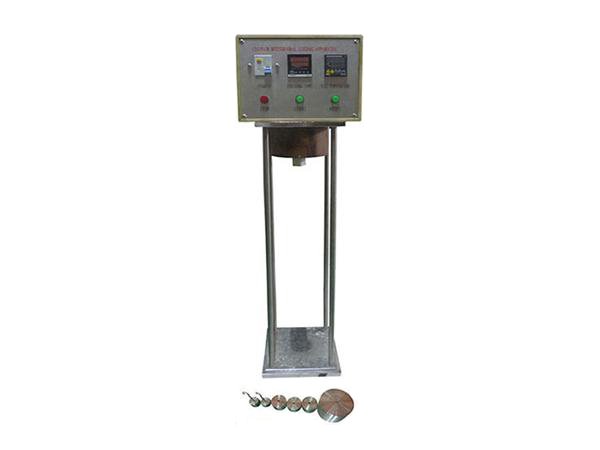

This device consists of a control cabinet, mounting plate, heating device, instrument input socket (standard equipped with 10A for testing connectors in high temperature conditions, 10A and 16A for extreme high temperature conditions) hook, and the principle weight, supplementary weight.

Parameters:
1. Power supply: 220V,50/60HZ.
2. Table 3-Maximum and minimum withdrawal forces
4. Minimum withdrawal forces:
5.The heating gauge of 10A for testing connectors for hot conditions, 10A and 16A for very hot conditions, others are test gauge in cold conditions, test gauges are optional.
