Standard
IEC 60884-1 2013 clause 24.2, IEC 60598-1, IEC 60998.1, VDE0620, IEC 60068-2-31, BS1363.1, EN50075, UL60730, IEC 60312-1 and so on
Application
This device is suitable for testing the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.
Test sample
Plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.
Feature

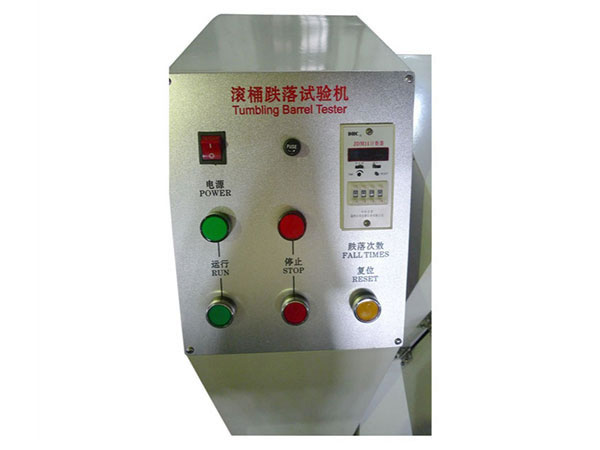

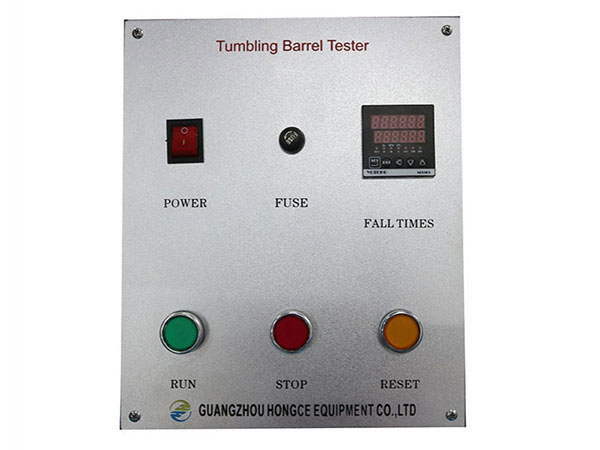

This tester can preset test times, and automatically stop when set test time is completed.

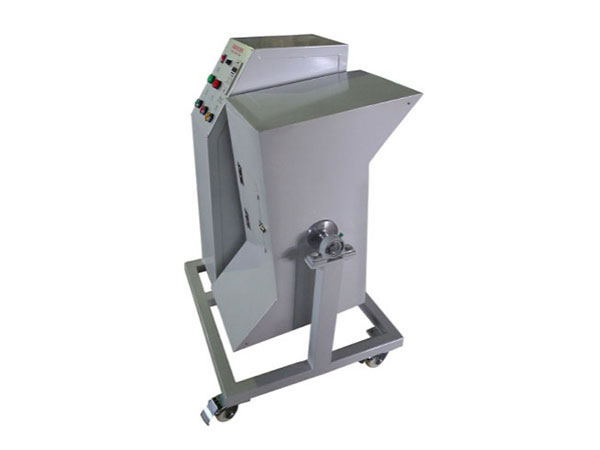

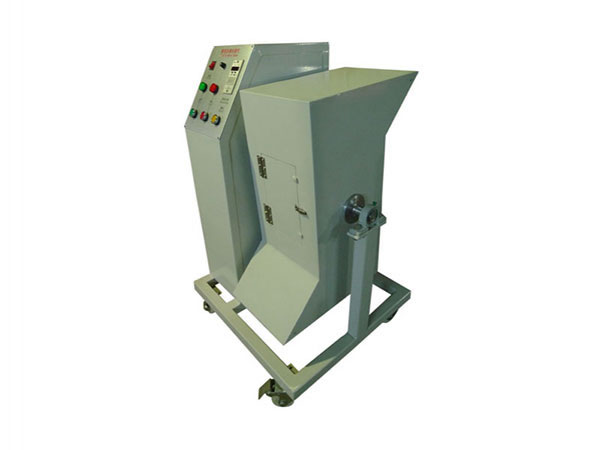

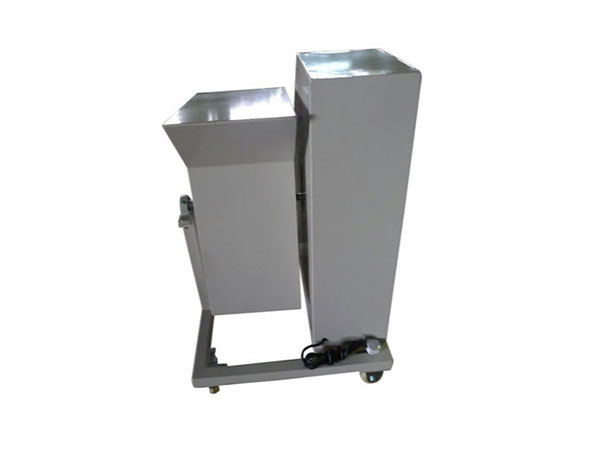

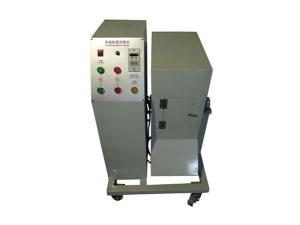

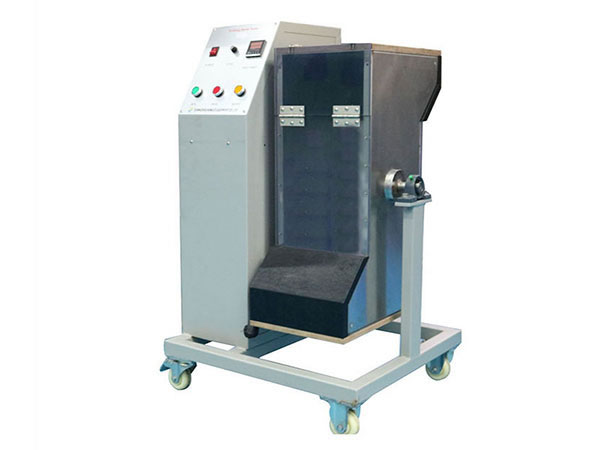

HC9922
1. Block of wood
2. Plastics laminated sheet
3. Rubber
4. Section A-A
5. For fastening of ends
6. Steel
7. The body of the rotating barrel is a sheet with 1.5 mm thickness

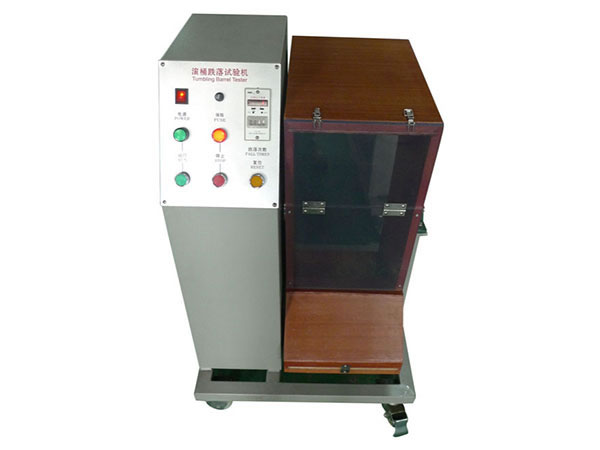

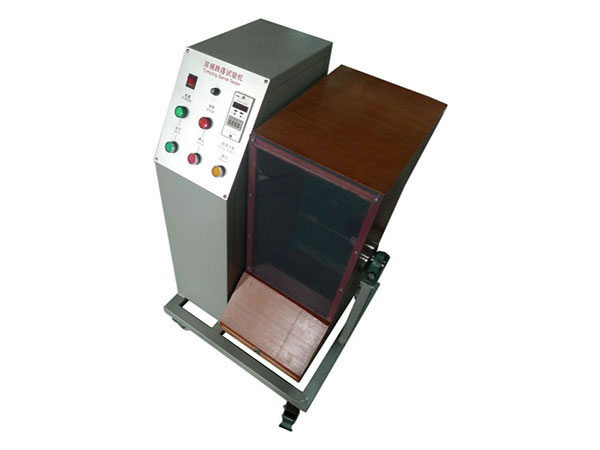

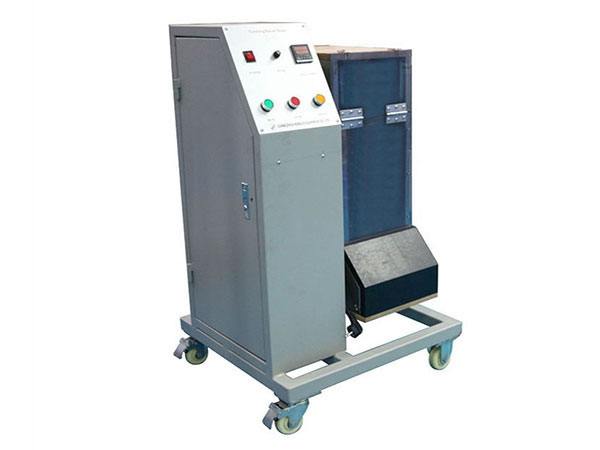

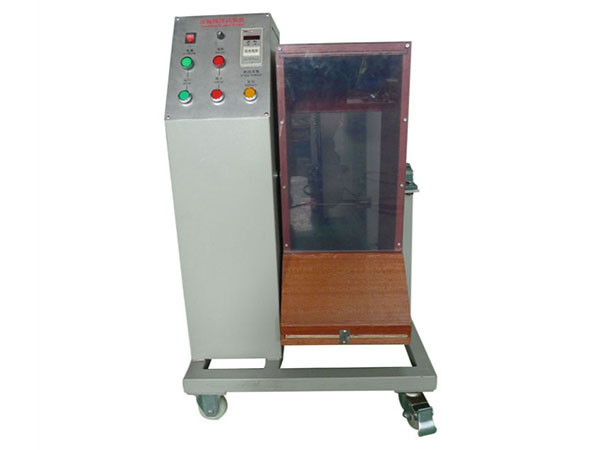

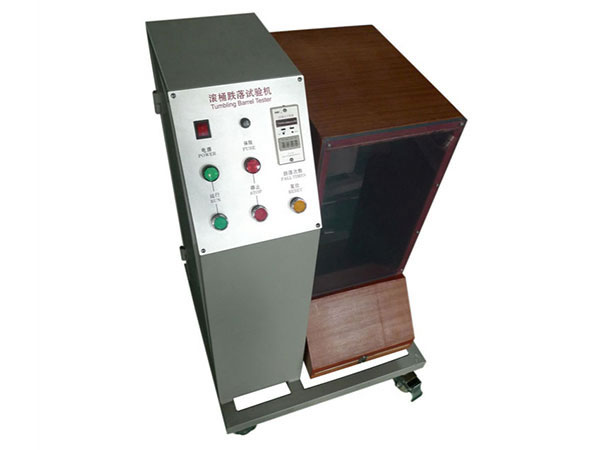

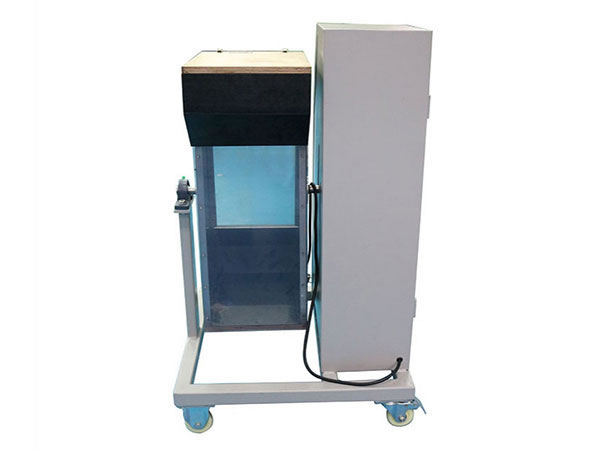

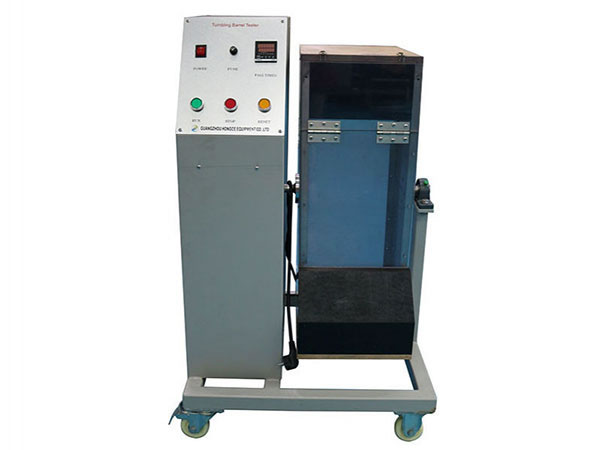

HC9922B
1. 19mm nominal thick blockboard or suitable alternative
2. 19mm norminal thick blockboard can be removeable for the replacement of the impact plates
3. Transparent sheet for observation purposes. May be removable for loading
4. Impact base 9 mm nominal thick plywood to be replace able( both ends )

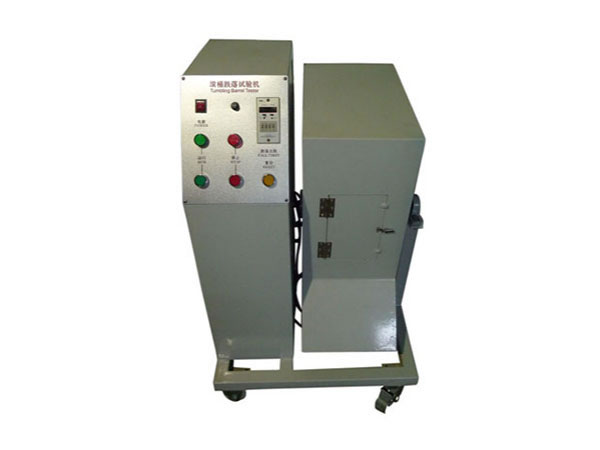

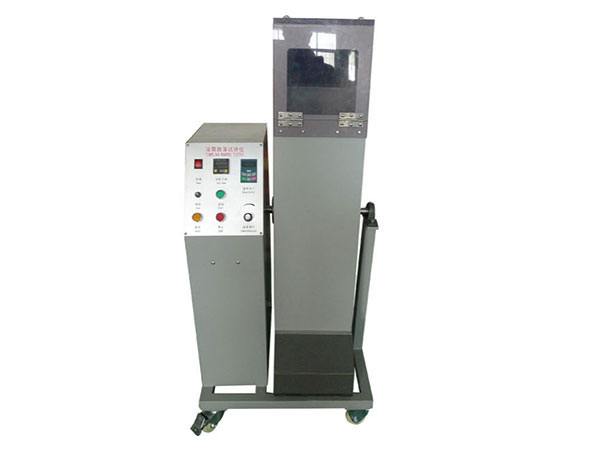

HC9922C
1. Sheet steel 5
2. Hard wooden plate 20
3. Window 200*300
Drive: geated motor and V-belt drive
Speed of rotation: approximately 5 r/min
A counter, Connected to the shaft of the drum, registers the number of falls to which the nozzle has been subjucted.
| Model | ||||
| Rotate speed | 5rpm | 5rpm | 5rpm | 5rpm |
| Drop rate | 10time per min | 10time per min | 10time per min | 10time per min |
| Material | Sideways 1.5mm high-quality steel plate, upper and lower for 3mm steel pad in the 10-19mm wood and oblique part slide surface is plastic laminate, with triangle rubber pad | 3mm steel | Front and rear are the transparent plastic sheet, the up, down, left and right are with thickness of 10~19mm plywood | 5 mm steel and 20mm hard wooden plate |
| Test times | 0~9999 | 0~9999 | 0~9999 | 0~9999 |
| Drop height | 500mm (1000mm for option) | 500mm | 500mm | 800mm |
| Barrel number | Single or double | Single barrel | Single barrel | Single or double |
| Application | Plug and socket and similar electrical accessories | Plug type lamp ballast / transformer and power socket install luminaries, plug device | BS plug and socket-outs | Household vacuum cleaners and similar electrical appliances |
| Standards | IEC60884.1, IEC60068-2-31, EN50075 | IEC60598-1 figure25, VDE0620-1 figure27 | BS1363.1 Figure20, UL60730 | IEC60312-1 |
| Power supply | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
