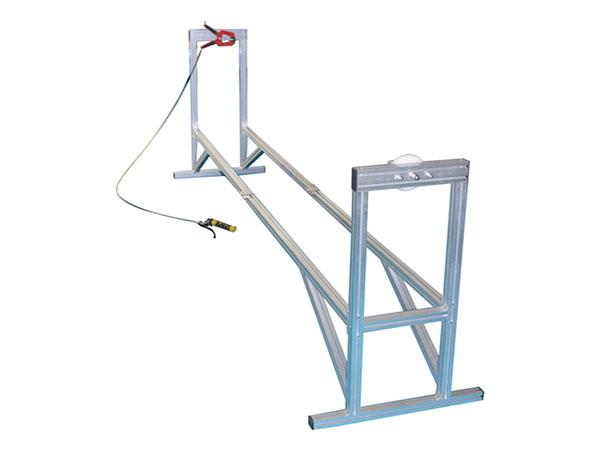

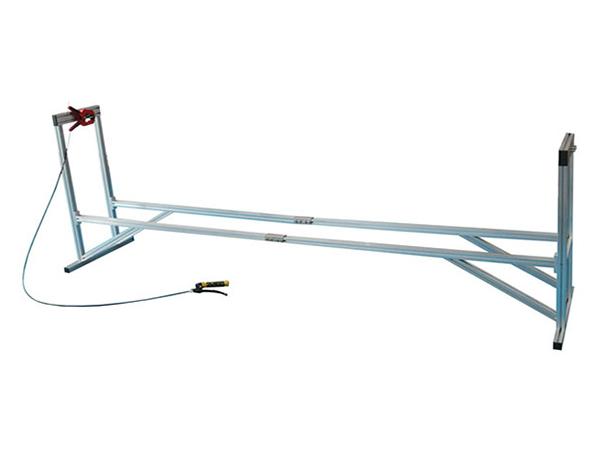

Portable Socket Outlets Mechanical Strength Tester

Standard:
IEC 60884-1 2013 clause 24.9 and figure 29

Application:
The portable socket outlet mechanical strength tester accurately measures the strength of portable socket outlets. These outlets are fitted with the lightest flexible cables with small nominal cross sections. If the sockets do not meet the testing requirements then they are susceptible to breakage due to everyday mechanical strain.

Test sample:
Multiple portable socket-outlets

Parameters:
1. Drop height: 750mm
2. Distance to fixed end: 2250mm
3. Test times: 8 times

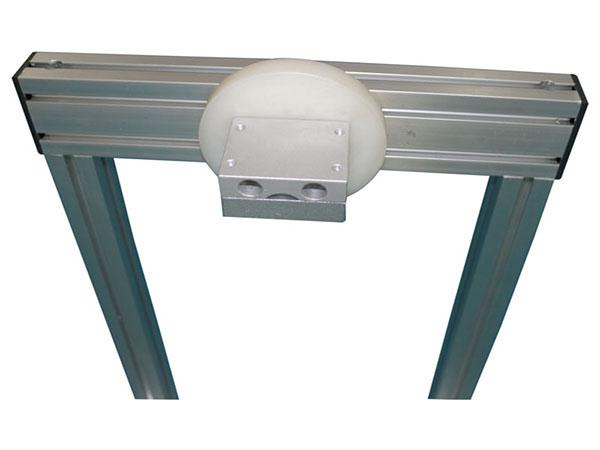

4. Rotation device: every 45°, 8 directions can be rotated

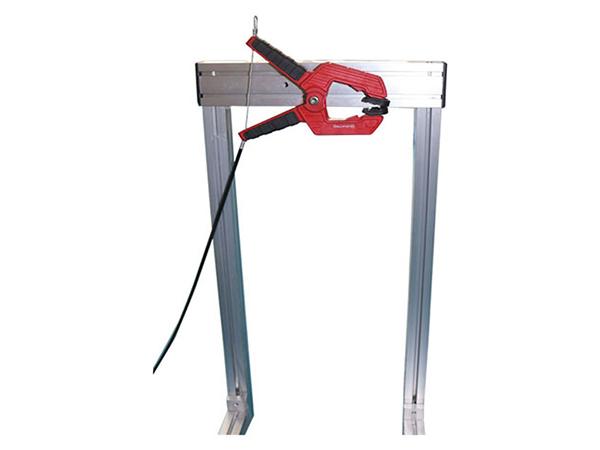

5. Operation: manual release

Features:
High precision and ideal repeatability in testing.
