Standard
IEC60884-1 2013 clause 12.2.2, 12.3.10, IEC60669-1, UL486A-B
Application

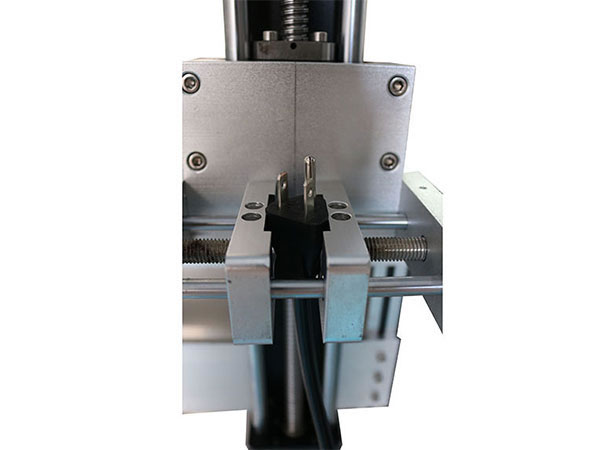

This device is use to test whether terminals with screw and screwless terminals can bear mechanical forces under normal operation. The conductor tester is mainly used to judge whether the design and structure of screw clamping terminals meet the requirements of clamp conductors without experiencing excessive damage.
Test Sample
Terminals, connectors
Feature

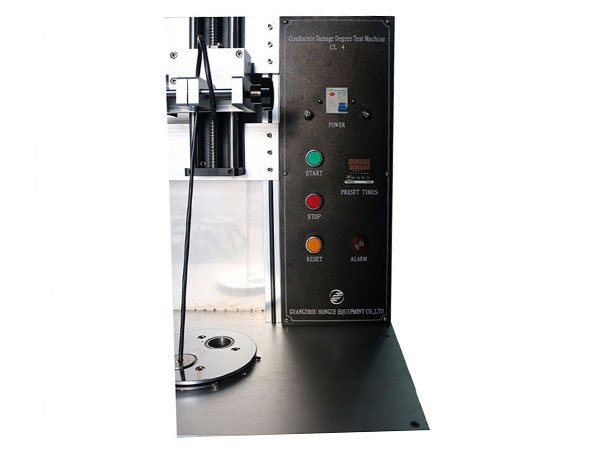

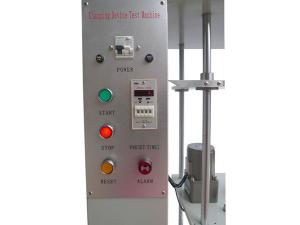

Guide rail structure. Preset test times. While testing, the tester will automatically stop when the preset test time is completed, and the output sound alarm is signaled.
Parameters

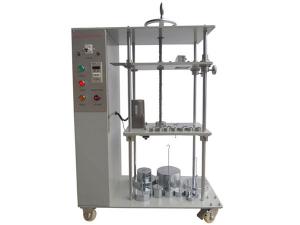

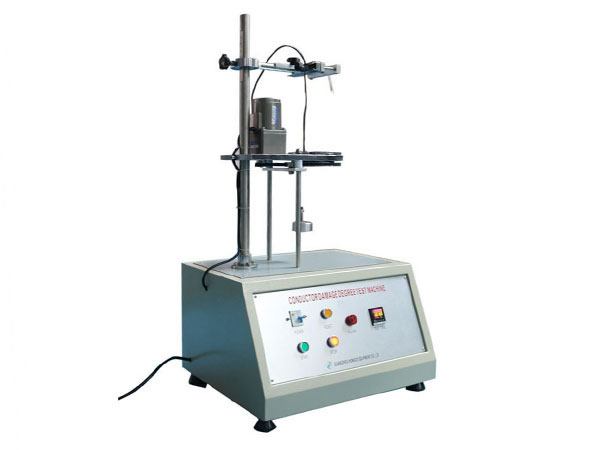

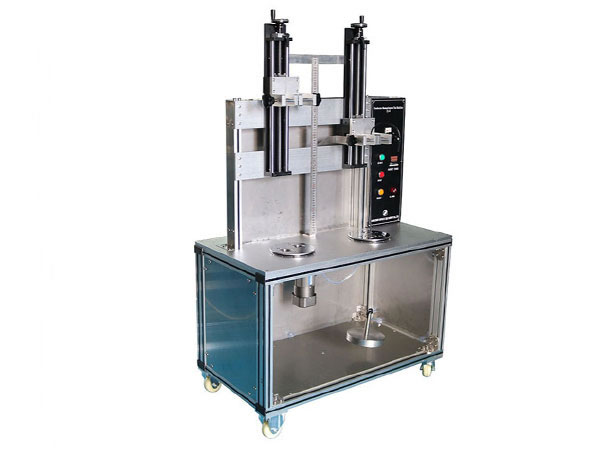

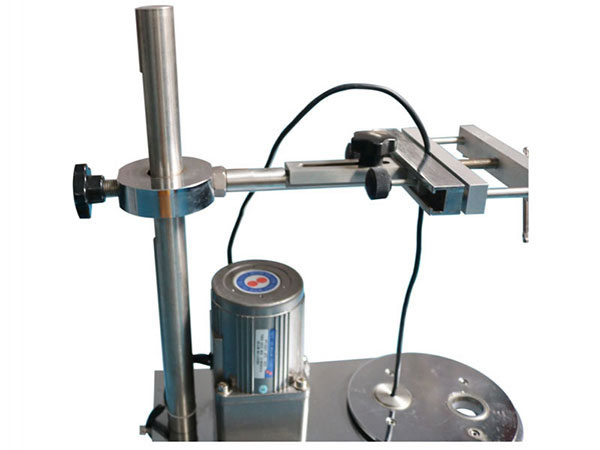

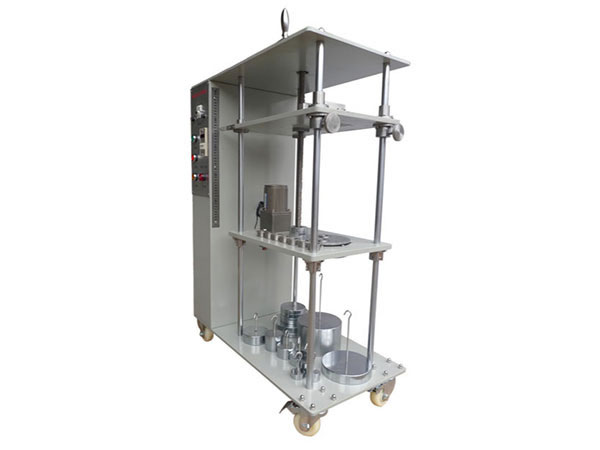

Model | inquiry>HC9903 | inquiry>HC9903A | inquiry>HC9903B(2 stations) |
Test rate | 10±2 RPM | 10±2 RPM | 9±1 RPM |
Diameter of gyration | 75mm | 75mm | 76mm |
Test times | 0~9999 | 0~9999 | 0~9999 |
Weights | 0.3, 0.4, 0.7, 0.9, 1.4, 2kg | 0.3, 0.4, 0.7, 0.9, 1.4, 2, 2.9, 4.5, 5.9, 6.8, 8.6, 9.5, 10.4, 14, 15, 16.8, 20, 22.7kg | 0.7, 0.9, 1.4, 2.3, 3.6, 4.5, 6.8, 11.4, 13.6, 18.2, 22.7, 27.2, 36.3, 45.4kg |

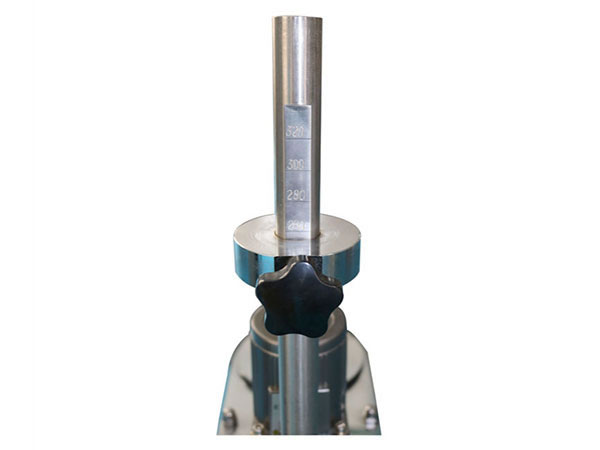

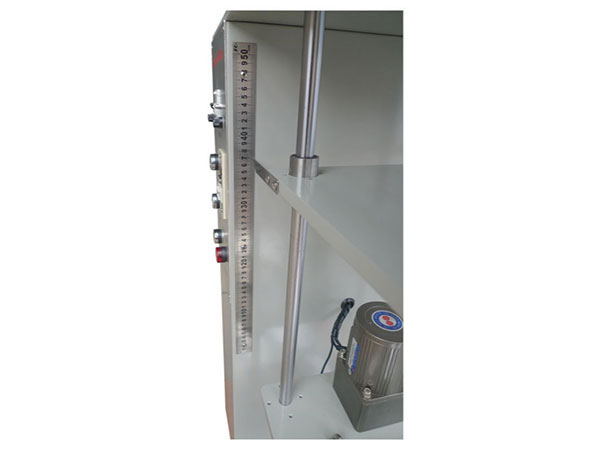

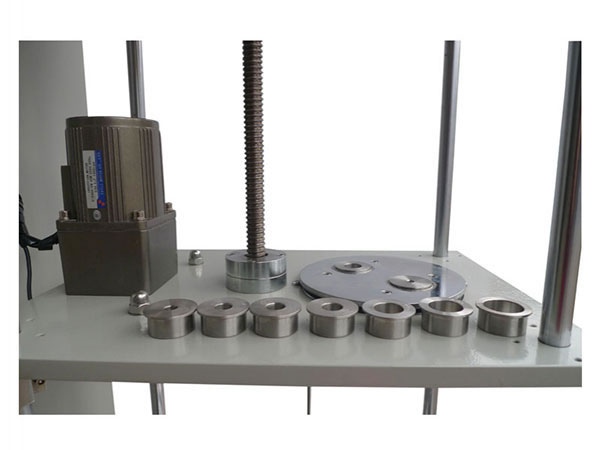

Test height | 260, 280, 300, 320mm | 250~500mm | 250~500mm |
Diameter of ferrule hole | 6.5, 9.5, 13, 14.5mm | 6.5~28.6mm, 12 pc | 6.5~28.6mm, 12 pc |
Standards | GB2099.1, GB16915.1 | GB13140.3 | UL486A-B, UL498 |
