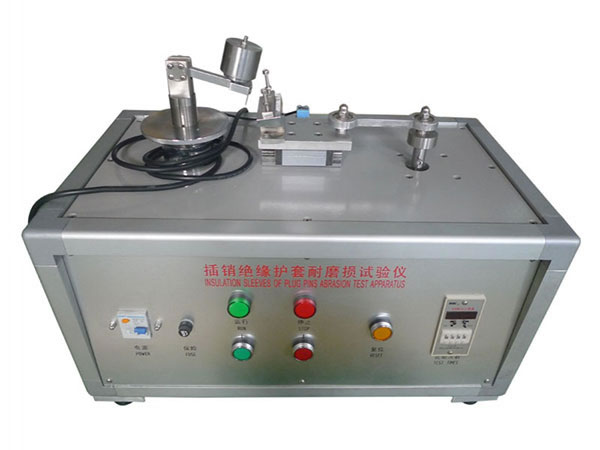

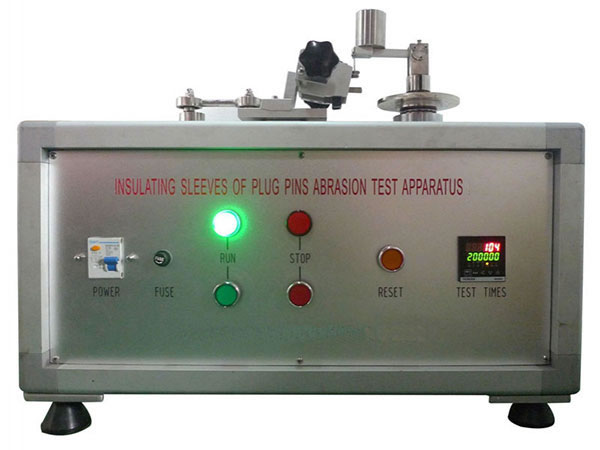

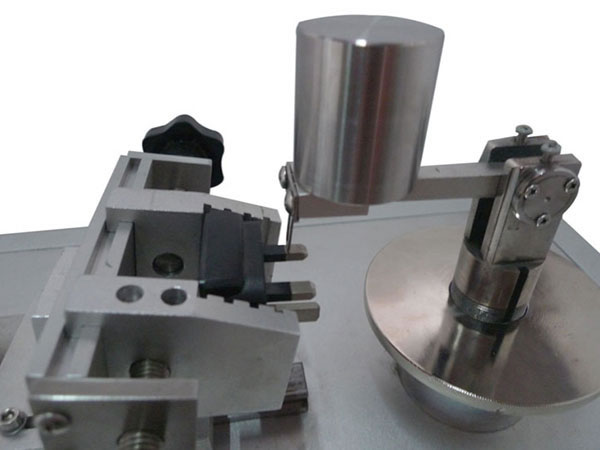

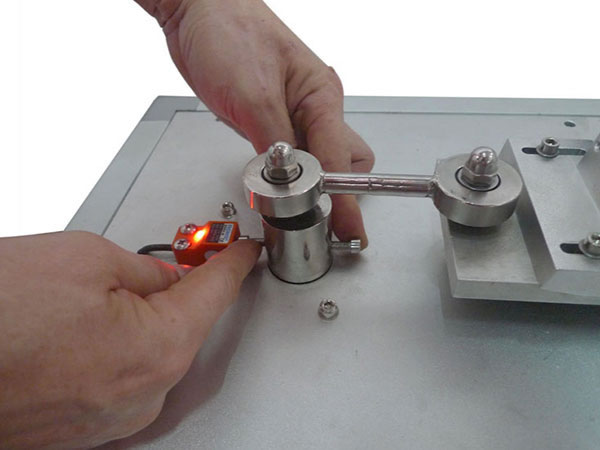

Plug Insulation Sleeve Abrasion Test Apparatus

Standard
IEC 60884-1 2013 clause 24.7 , BS1363-1 figure 9

Application
This device is use for testing the abrasion resistance strength of the insulation sleeves of plug pins

Test Sample
Insulation Sleeve of plug pins

Feature

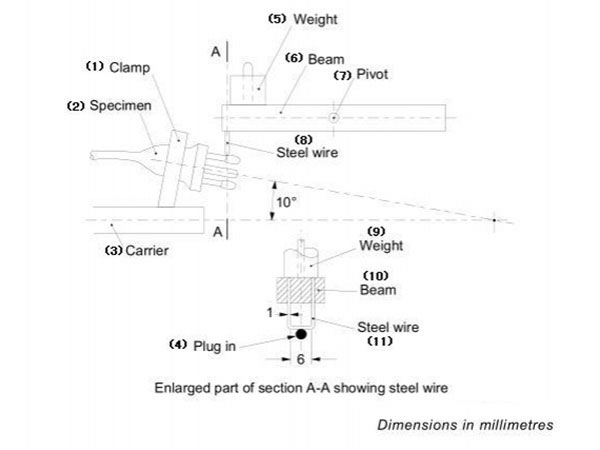

Enlarged part of section A-A showing steel wire

(1) Clamp, (2) Specimen, (3) Carrier, (4) Plug in, (5) Weight, (6) Beam, (7) Pivot, (8) Steel wire, (9) Weight, (10) Beam, (11) Steel wire

Parameters
1. Power supply: AC220V 50Hz
2. Station: single station
3. Test times: 1~999999, preset
4. Rate of abrading: 30 movements per minute
5. Load: 4N
6. Stroke: 9mm, about 7mm scratch on insulation sleeve
7. Steel wire: diameter 1mm, effective length 6mm
