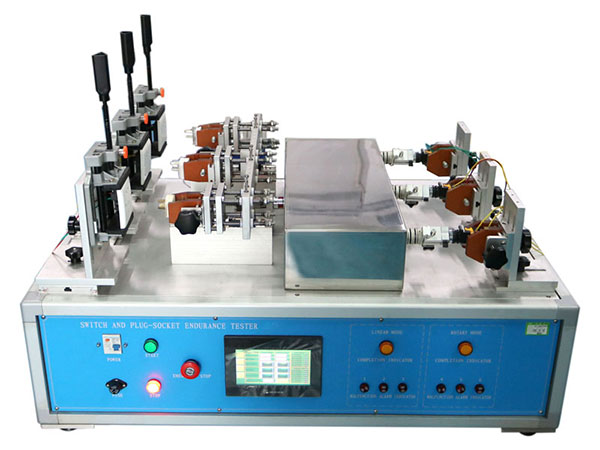

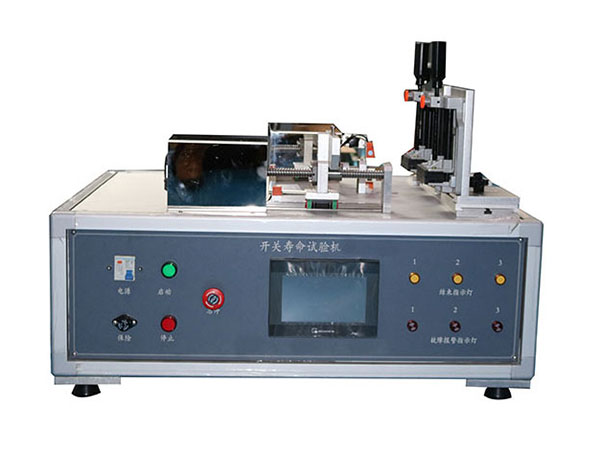

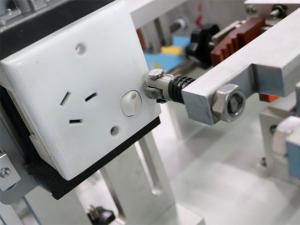

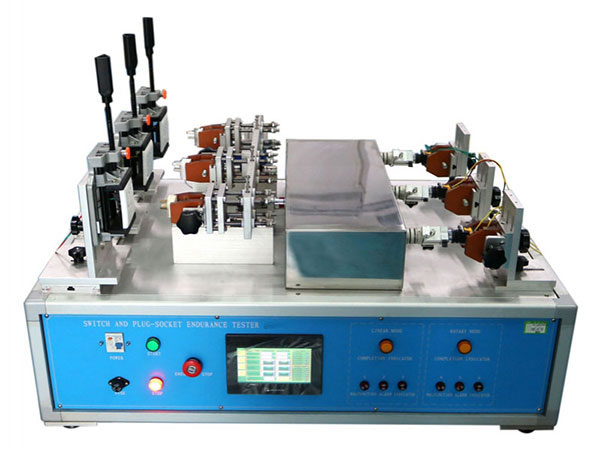

Switch Plug Socket Endurance Tester

Standard

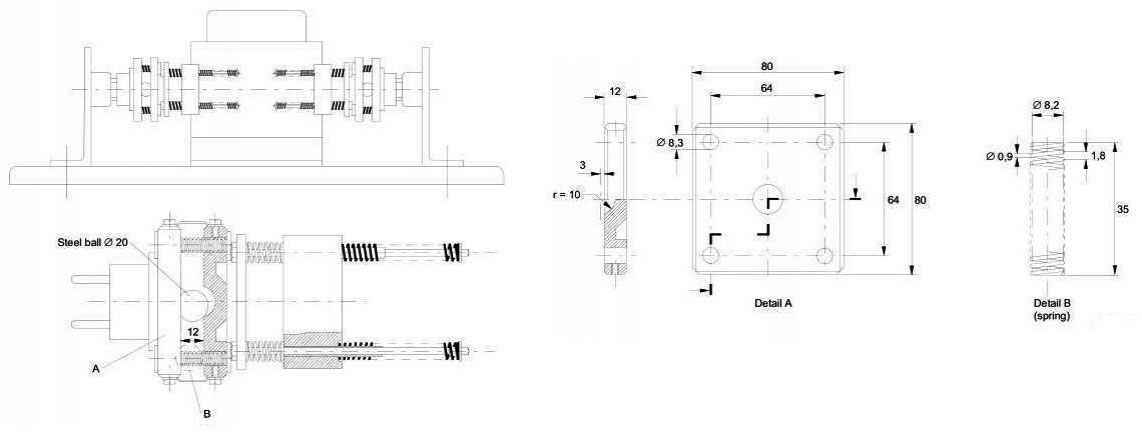

IEC 60884-1 2013 clause 20, 21, CISPR 14-1, IEC 61058-1, IEC60669-1 etc.

Application
This device is used for household electrical appliance switches, plugs and sockets. It tests the couplers for on-off ability, breaking capacity and normal operation life testing. The tester is suitable for determining whether the socket can withstand normal, everyday use without sustaining mechanical damage or electrical fatigue failure. It also tests for any contact adhesion phenomenon or long term closure or disconnection phenomenon.

Test Sample
Household or similar purpose switches, plugs, sockets, couplers

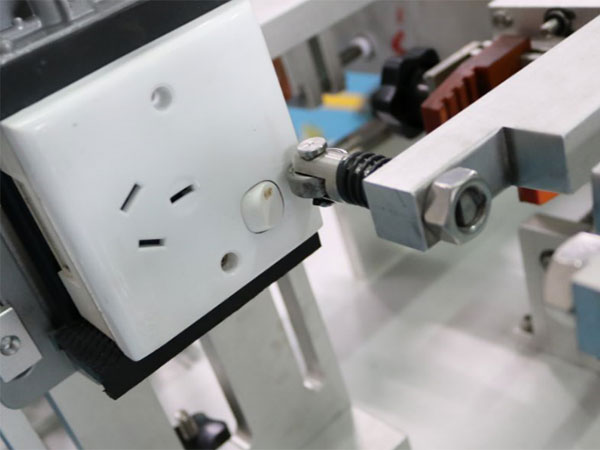

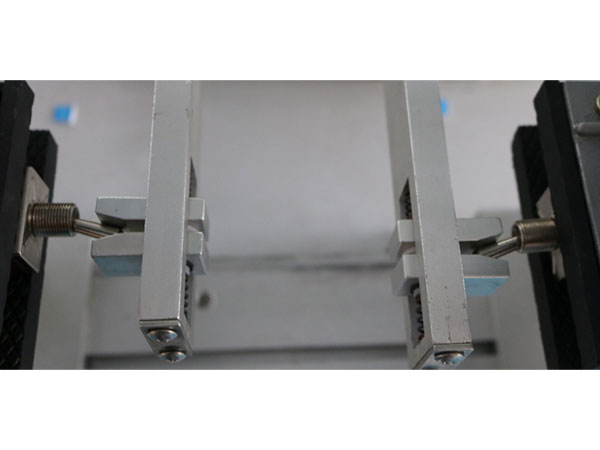

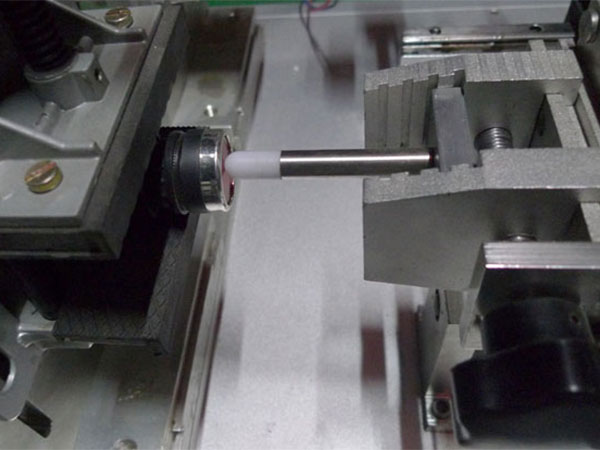

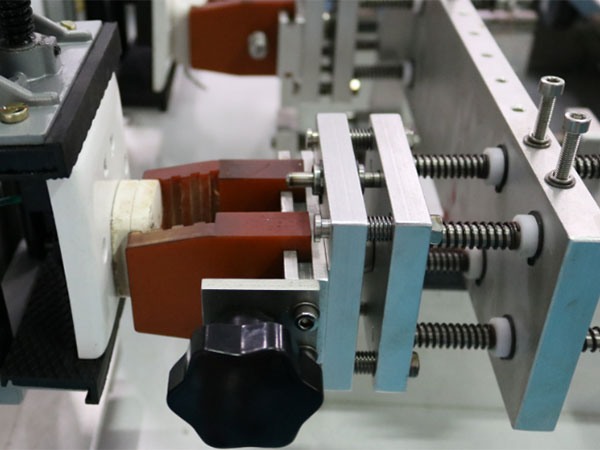

Features

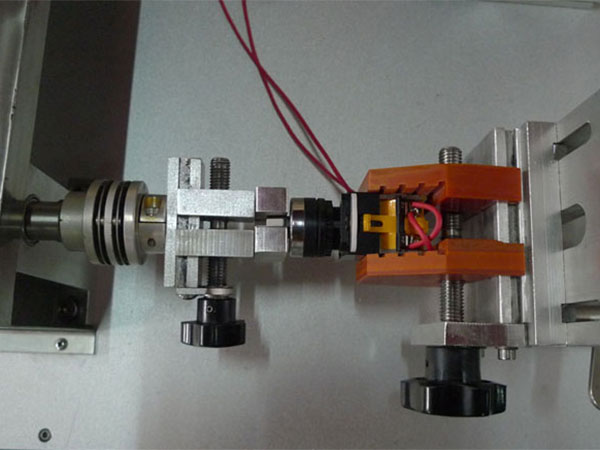

The tester features an alloy frame and stainless steel sealing plate, servo motor, precision ball screw and synchronous belt drive. 7 inch color touch screen operation and powerful digital display function and PLC control system. Preset test times, conduction current time (opening time), test speed, test trip and rotation angle (up to 15 angles). With current display function, can display the conducting current.

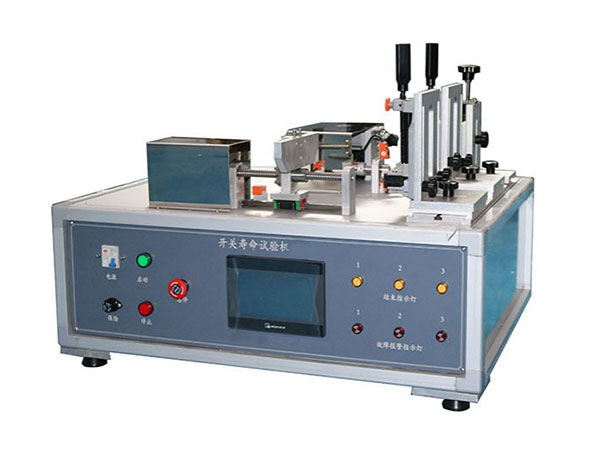

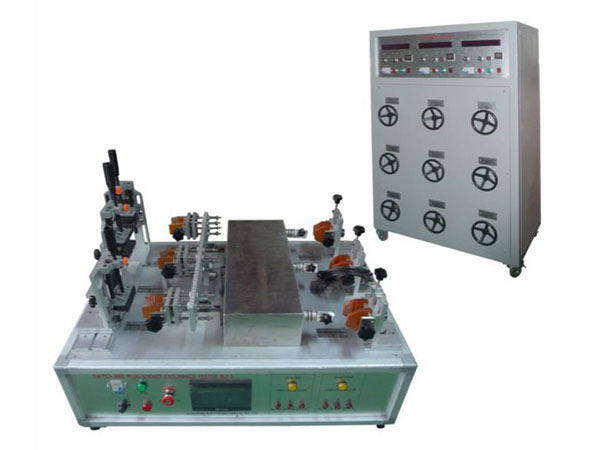

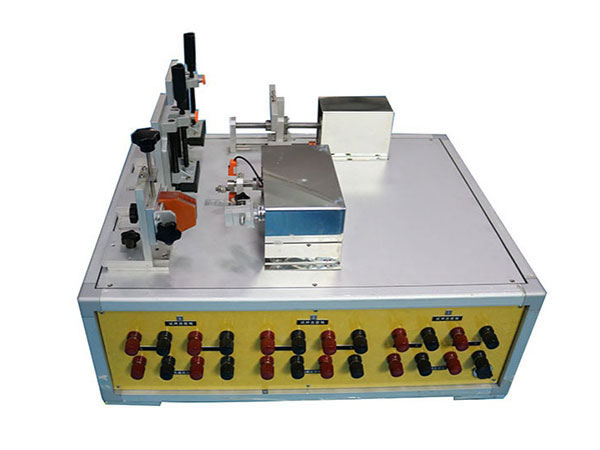

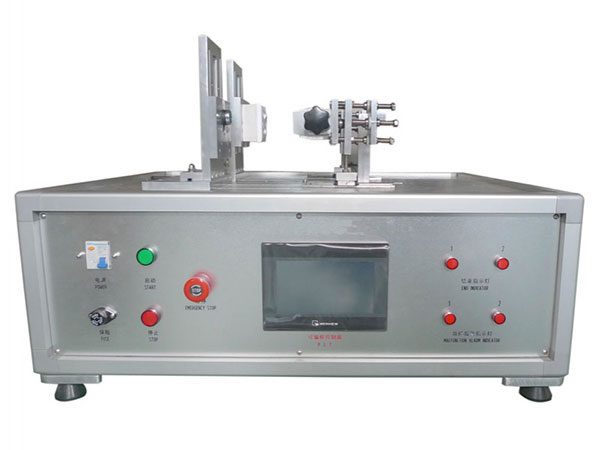

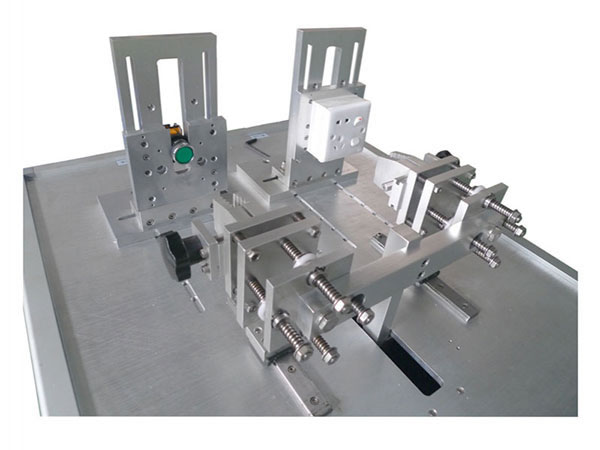

Station switch socket tester H914C

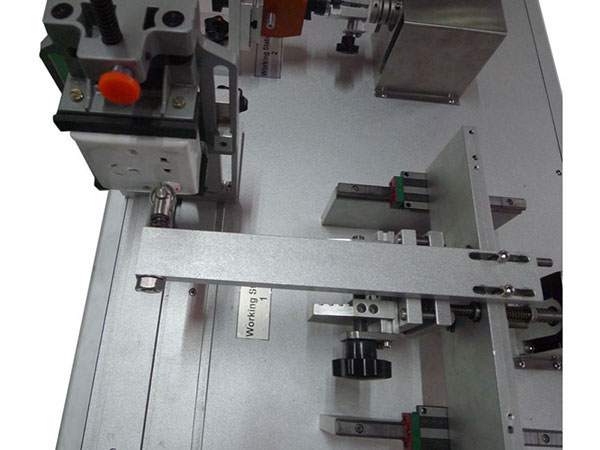

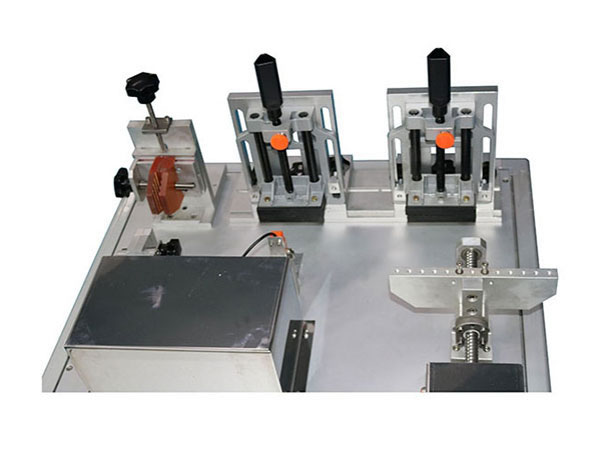

Station switch socket tester H914B

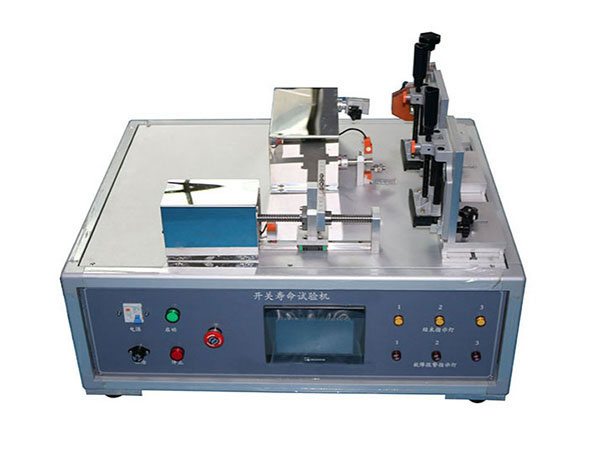

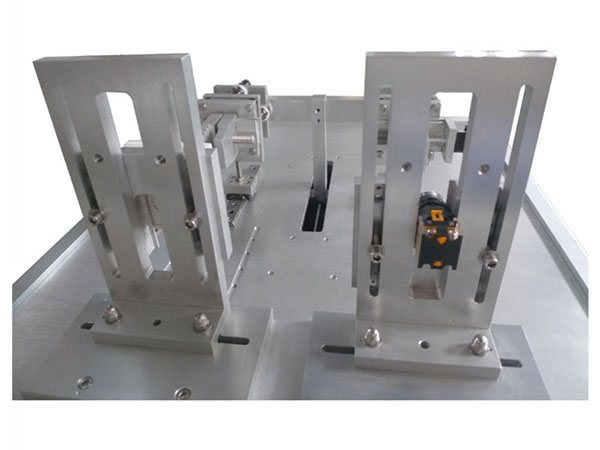

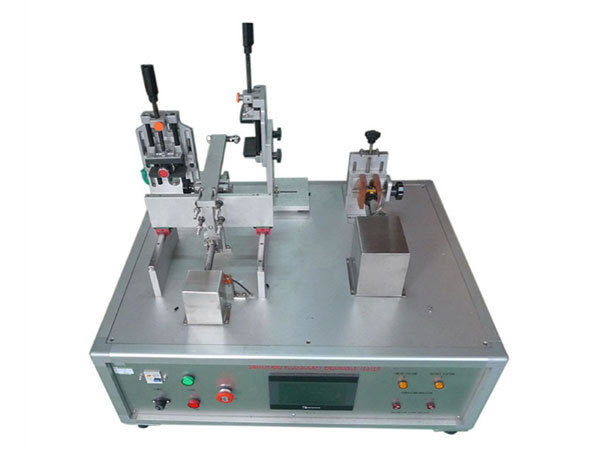

Station switch socket tester H914A

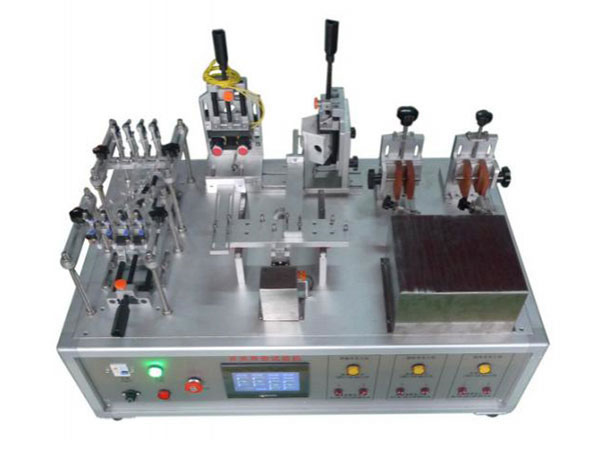

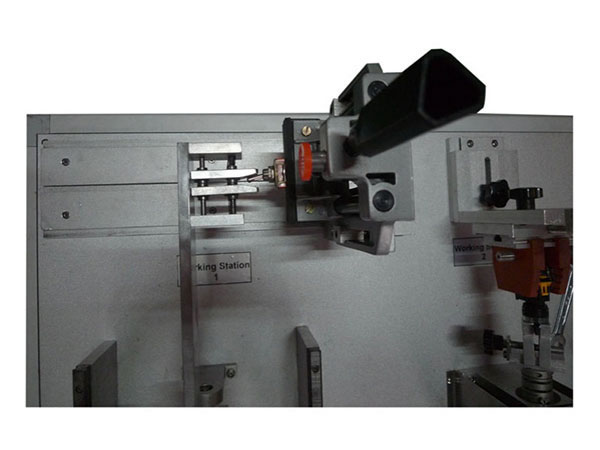

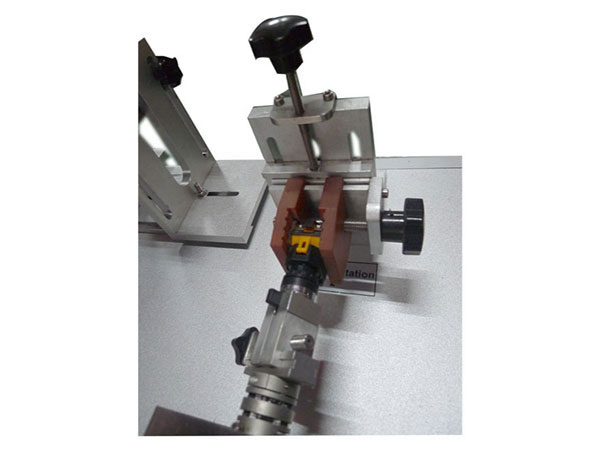

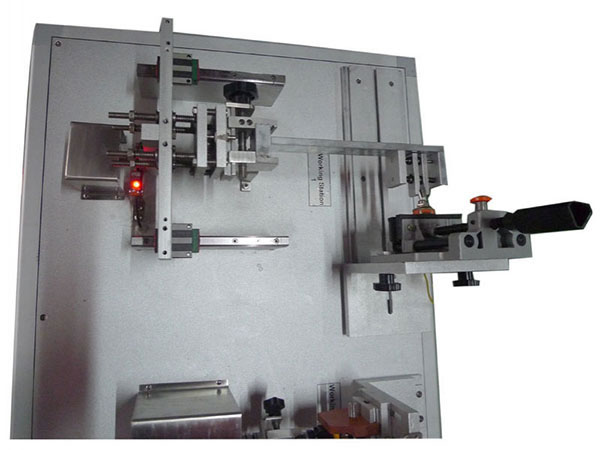

Station switch socket tester(customized, can test key switch)
Station switch socket tester H916 (General)

Parameters

Model H9914 H9914A H9914B H9914C
Power supply AC 220V±10% 50Hz
Operation interface 7 inch color LCD touch screen
Drive mode servo motor + ball screw / timing belt or pneumatic
Control system PLC control
Stations 6 Stations: 3 liner stations; 3 rotating stations. Synchronization control 2 liner stations. Synchronization control 2 Stations: 1 liner stations; 1 rotating stations. Independent control 3 stations, pneumatic. Independent control
Test sample Button switch, rocker switch, toggle switch, rotary switch, plug and socket Button switch, rocker switch, toggle switch, plug and socket Button switch, rocker switch, toggle switch, rotary switch, plug and socket Button switch, rocker switch, toggle switch, plug and socket
Test times 0-999999, preset 0-999999, preset 0-999999, preset 0-999999, preset
Connecting time 0-99.9s, preset 0-99.9s, preset 0-99.9s, preset 0-99.9s, preset
Liner stroke 0-100mm, preset 0-100mm, preset 0-100mm, preset 100mm
Rotate angle 0-360°, preset - 0-360°, preset -
Test speed 15 times per min 7.5 times per min 30 times per min 15 times per min 7.5 times per min 30 times per min 15 times per min 7.5 times per min 30 times per min 15 times per min 7.5 times per min 30 times per min
Clamp XYZ three axis clamp XYZ three axis clamp XYZ three axis clamp XYZ three axis clamp
Test mechanism (multi) Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism
Load ports 6 ports 2 ports 2 ports 3 ports
Dimension Weight WDH=1090*800*700mm 147kg WDH=880*680*700mm 80kg WDH=880*680*700mm 80kg WDH=880*680*700mm 80kg
