Load Bank for Power Cord Flex Tester

IEC 60884-1 2013 clause 23.4 and UL817, VDE0620

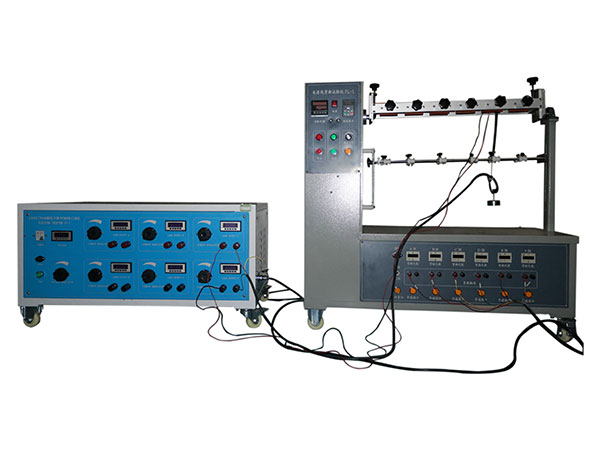

This device is used for testing the flexing properties of non-rewirable plugs (terminals) and non-rewirable portable socket-outlets with a power cord flexing tester.

Test Sample
Non-rewirable plugs and non-rewirable portable socket-outlets

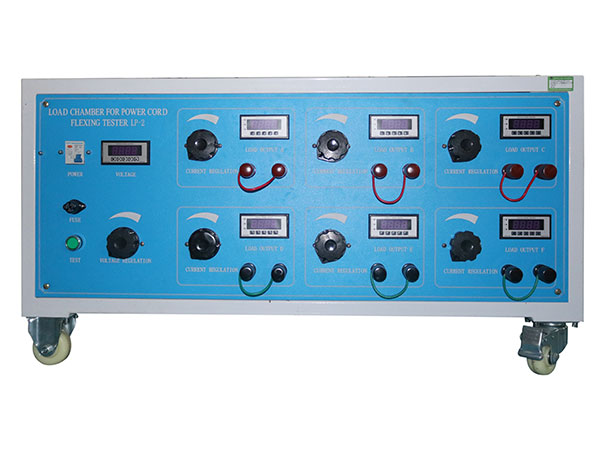

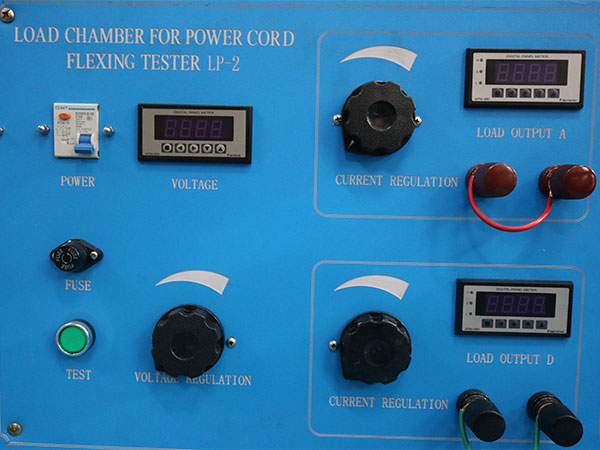

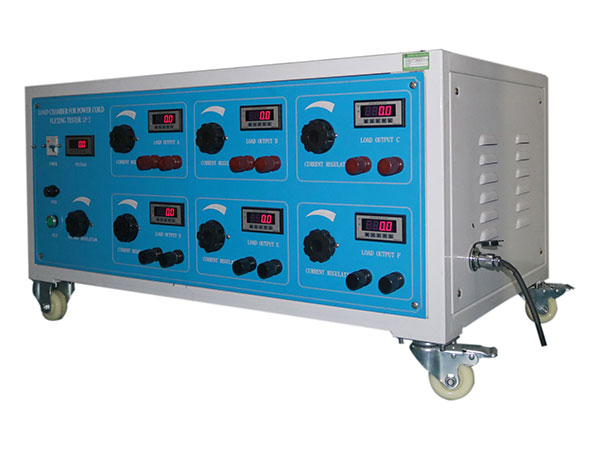

The box type floor structure is adopted and it provides 6 channels of low voltage and high current output.

1. Power supply: AC220V±5% 50Hz
2. Output current: 0 ~ 40A is arbitrary adjustable
3. Output voltage: 12V
4. Test station: 6 stations
5. Ammeter Accuracy: ±1%
6. Connecting wire: 7 PIN Aviation wire
7. Environment temperature: 80~106kpa, 5~50℃, (20~90)%RH
